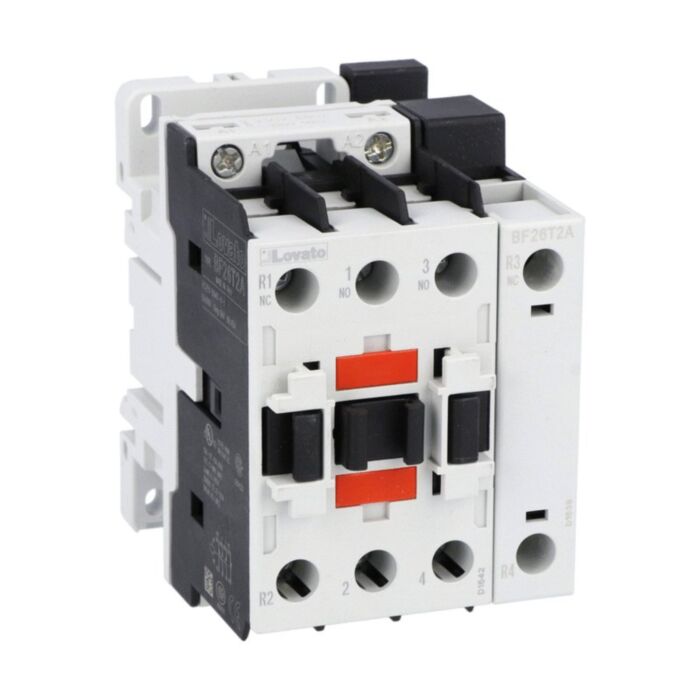

BF26T2A04860 - 4P CONTACTOR 2NO+2NC 45A 48V 60HZ

Why Choose the BF26T2A04860?

The Lovato BF26T2A04860 is a four‑pole contactor designed for reliable AC‑1 switching. With a 48 VAC 60 Hz coil, 45 A IEC Ith rating, and a versatile 2NO + 2NC contact set, it suits a wide range of control and power applications. Flexible installation via screw fixing or 35 mm DIN rail speeds panel build. Conforms to IEC/EN/BS 60947 standards for assured performance.

Engineered for demanding environments, it offers Ui 690 V and Uimp 6 kV, a mechanical life of 20,000,000 cycles, and dependable operation from −50 to 70 °C up to 3000 m altitude. The AC coil is optimised for 48 VAC 60 Hz control systems, and terminals tighten to 2.5–3 Nm. UL/CSA 15 HP at 480 V adds versatility for motor circuits, while sustainability certification supports responsible specification.

Key Benefits

• 45 A AC-1 IEC rating for dependable power switching.
• Four poles with 2NO + 2NC versatility.
• 48 VAC 60 Hz AC coil for standard control circuits.
• High insulation: Ui 690 V and Uimp 6 kV.
• Wide operating temperature −50 to 70 °C for harsh sites.
• Screw or 35 mm DIN rail mounting flexibility.
• Long mechanical life, rated 20,000,000 cycles.
• UL/CSA 15 HP rating at 480 V.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 507 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26T2A04860 four-pole contactor (2NO + 2NC)
• Factory-fitted 48 VAC 60 Hz AC coil
• Basic safety and installation information

Applications

• General AC-1 load switching up to 45 A
• Motor circuits up to 15 HP at 480 V (UL/CSA)
• Multi-pole control and power distribution requiring 2NO + 2NC
• Panel builds using screw or 35 mm DIN rail mounting
• Installations from −50 to 70 °C and up to 3000 m altitude

Safety note: Install and commission only by qualified personnel. Verify a 48 VAC 60 Hz coil supply, observe 2.5–3 Nm terminal torque, and operate within specified ratings, temperatures and pollution degree 3 in accordance with applicable standards.
