BF26T2A048 - 4P CONTACTOR 2NO+2NC 45A 48V 50/60HZ
MPN: BF26T2A048
Special Price
£127.73
£106.44
Regular Price
£212.88
Why Choose the BF26T2A048?

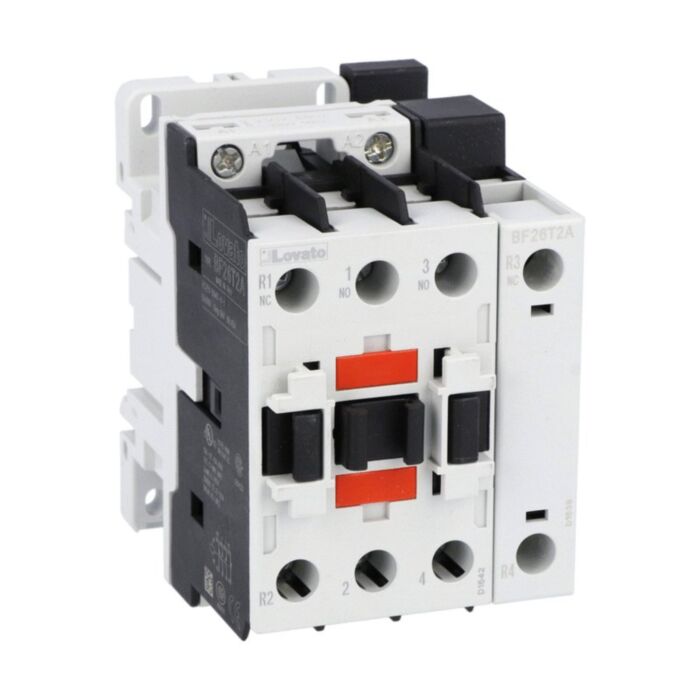

The Lovato BF26T2A048 four-pole contactor delivers reliable switching for industrial panels. With a 48 VAC 50/60 Hz coil and a 2NO/2NC configuration, it handles AC1 duties up to 45 A. Designed for straightforward integration, it mounts via screw fixings or on a 35 mm DIN rail, supporting clean, compact installations without compromising performance or control flexibility.
Built for endurance, the BF26 platform offers 20,000,000 mechanical cycles and robust electrical margins with Ui 690 V and Uimp 6 kV. It operates from -50 to 70 °C up to 3000 m altitude, and terminals tighten to 2.5–3 Nm. Conforming to IEC/EN/BS 60947 and UL/CSA standards, it suits demanding environments and compliance-led projects.
Key Benefits
- Flexible 4-pole, 2NO/2NC configuration for varied control schemes.
- 48 VAC 50/60 Hz coil for straightforward control circuit integration.
- 45 A AC1 rating ensures dependable switching of resistive loads.
- Ui 690 V and Uimp 6 kV provide strong insulation and impulse withstand.
- Screw or 35 mm DIN rail mounting speeds panel installation.
- Wide -50 to 70 °C operating range suits harsh environments.
- 20,000,000 mechanical cycles for long service life and reliability.
- UL/CSA 15 HP at 480 V supports suitable motor applications.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 520 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T2A048 four-pole contactor
- Manufacturer datasheet (downloadable)
- Original packaging
Applications
- General AC1 resistive load switching up to 45 A
- Motor loads up to 15 HP at 480 V (UL/CSA)
- Industrial control panels and automation assemblies
- Building services and power distribution switching
- OEM equipment requiring 48 VAC control coils
Frequently Asked Questions
What is the coil voltage and type?
It has a 48 VAC coil rated for 50/60 Hz operation.
How many poles and what is the contact arrangement?
It is a four‑pole device with a 2NO and 2NC configuration.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
What are the key electrical ratings?
It’s rated 45 A AC1 (Ith), with Ui 690 V and Uimp 6 kV.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA equivalents.
Safety note: Install and service only by qualified personnel. Isolate power before work, tighten terminals to 2.5–3 Nm, and operate within stated electrical and environmental ratings.
| Manufacturer Part Number | BF26T2A048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975162187 |
| Coil Voltage | 48V |
