BF26T2A02460 - 4P CONTACTOR 2NO+2NC 45A 24V 60HZ
MPN: BF26T2A02460
Special Price
£127.73
£106.44
Regular Price
£212.88
Why Choose the BF26T2A02460?

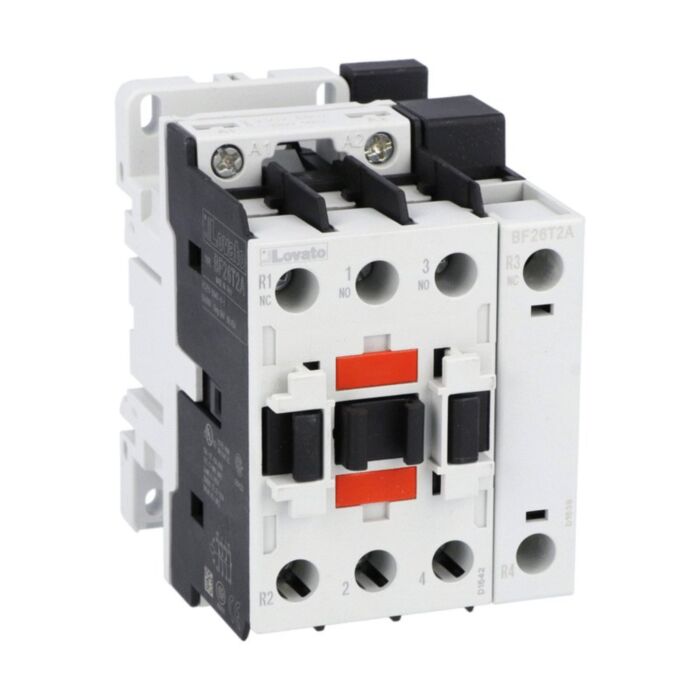

Lovato BF26T2A02460 is a four‑pole contactor designed for reliable AC control in industrial panels. With a 24VAC 60Hz coil and 2NO/2NC contacts, it delivers versatile switching across control and power circuits. Rated Ith (AC1) at 45A and UL/CSA 15HP at 480V, it suits motor and resistive loads. Mount easily on DIN rail 35mm or with screws for fast integration.
Built for demanding environments, this contactor offers 690 V Ui and 6 kV impulse withstand, with a mechanical life of 20,000,000 cycles. It operates from −50 to 70 °C and stores from −60 to 80 °C, up to 3000 m altitude, pollution degree 3. Terminals tighten to 2.5–3 Nm, and the unit weighs 500 g. Conforms to IEC/EN/BS 60947 series, UL and CSA standards.
Key Benefits
- Robust 45 A AC1 rating for dependable resistive load switching.
- 2NO/2NC contacts provide versatile control and interlocking options.
- 24 VAC 60Hz coil suits common control transformer outputs.
- DIN rail 35mm or screw mounting for fast, flexible installation.
- Wide −50 to 70 °C operating range for harsh environments.
- High insulation 690 V and 6 kV impulse withstand capability.
- Long mechanical life of 20,000,000 cycles reduces maintenance.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T2A02460 four-pole contactor (2NO/2NC, 24VAC coil)
- Manufacturer datasheet (downloadable)
- Original manufacturer packaging
Applications
- AC motor control up to 15 HP at 480 V (UL/CSA)
- Resistive load switching up to 45 A AC1
- Control panels requiring DIN rail 35mm or screw mounting
- Heating and lighting circuits in industrial environments
- General power and control circuit switching
Frequently Asked Questions
What is the coil voltage and frequency?
The coil is AC, 60Hz, rated at 24 V.
How many and what type of contacts does it have?
It is a four-pole contactor with 2NO and 2NC contacts.
Can it be mounted on a DIN rail?
Yes, it mounts on 35mm DIN rail or by screw fixing.
What is the operating temperature range?
The operating range is -50 to 70 °C; storage is -60 to 80 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 equivalents.
Safety note: Install and commission only by a qualified electrician. Isolate all power before work, tighten terminals to 2.5–3 Nm, and operate within the specified voltage, current, and temperature limits.
| Manufacturer Part Number | BF26T2A02460 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975162224 |
| Coil Voltage | 24V |
