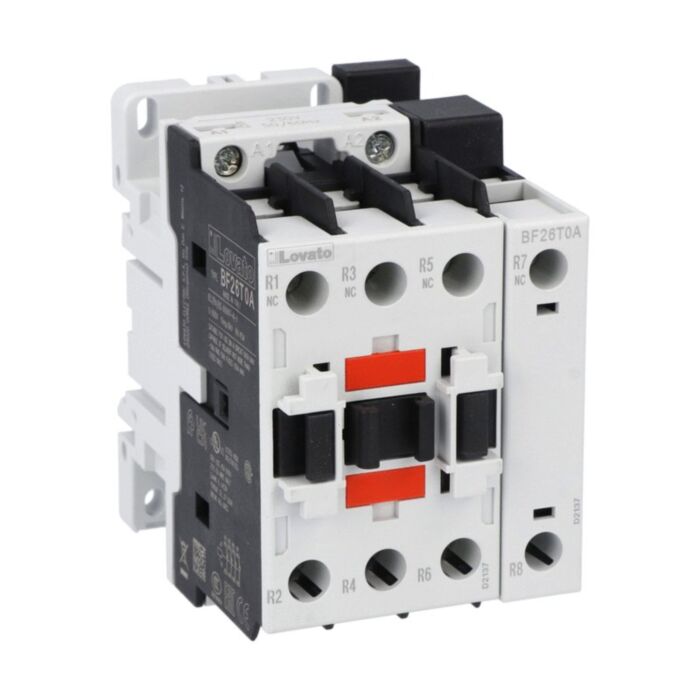

BF26T0A400 - 4P CONTACTOR NC 45A AC1 400V 50/60HZ
MPN: BF26T0A400
Special Price
£121.99
£101.66
Regular Price
£203.32
Why Choose the BF26T0A400?
SKU BF26T0A400 from Lovato is a four-pole contactor built for reliable AC control. Delivering 45A AC1 performance with a 400V AC 50/60Hz coil and 4NC contacts, it ensures dependable switching for general-purpose loads. Screw or 35mm DIN rail mounting provides flexible installation, helping panel builders streamline layouts without compromising on durability or consistency.
Engineered to IEC/EN/BS 60947 and UL/CSA standards, this BF26 contactor offers Ui 690V and Uimp 6kV for robust insulation performance. A mechanical life of 20,000,000 cycles and operation from -50 to 70°C support long service in harsh conditions. Rated 15HP at 480V (UL/CSA) and suitable up to 3000m altitude, it fits pollution degree 3 environments.
Key Benefits
- Four-pole, 4NC configuration for dependable control of AC loads.
- 45A AC1 rating supports higher-current general-purpose switching.
- 400V AC 50/60Hz coil suits common European control voltages.
- Screw or 35mm DIN rail mounting for fast, flexible installation.
- Ui 690V and Uimp 6kV enhance insulation and surge resilience.
- Long 20,000,000-cycle mechanical life reduces maintenance interventions.
- Operates -50 to 70°C; suitable up to 3000m altitude.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 520 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T0A400 four-pole contactor (4NC, 400V AC coil)
- Installation and safety information
- Manufacturer technical datasheet (downloadable)
- Original factory packaging
Applications
- General-purpose AC-1 load switching in industrial control panels
- Motor control circuits up to 15HP at 480V (UL/CSA)
- Power distribution, heating and lighting control schemes
- OEM machinery and automation assemblies
- Infrastructure and building services panels
Frequently Asked Questions
What coil voltage and frequency does the BF26T0A400 use?
It has a 400V AC coil rated for 50/60Hz operation.
How can this contactor be mounted?
It supports screw mounting or 35mm DIN rail installation.
What is the rated current and contact arrangement?
It is rated 45A AC1 and provides four poles in a 4NC configuration.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA equivalents.
Can it operate in harsh environments?
Yes, it operates from -50 to 70°C, up to 3000m altitude, Pollution Degree 3.
Safety note: Install and service only by qualified personnel. Isolate power before work, verify correct wiring, and tighten terminals to 2.5–3 Nm. Use within stated ratings and standards.
| Manufacturer Part Number | BF26T0A400 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975184912 |
| Coil Voltage | 400V |
