BF26T0A048 - 4P CONTACTOR NC 45A AC1 48V 50/60HZ

Why Choose the BF26T0A048?

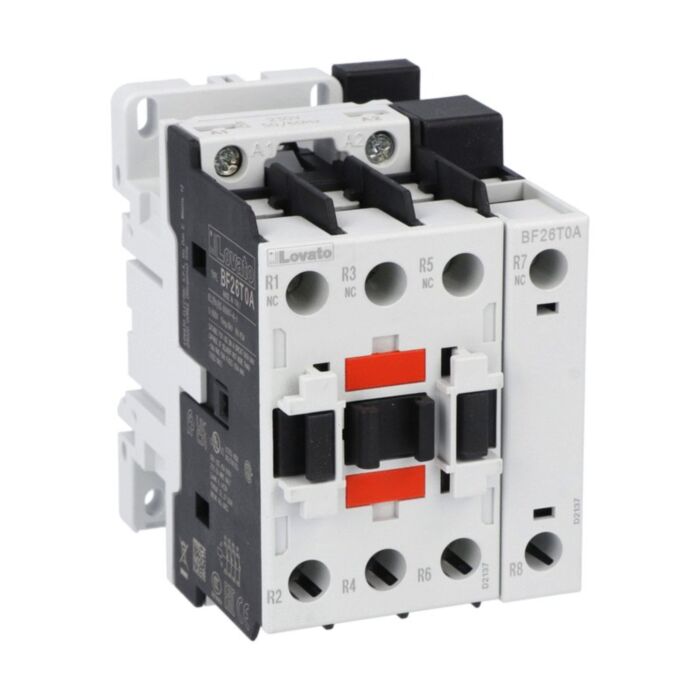

The Lovato BF26T0A048 is a four-pole contactor engineered for dependable control in industrial panels. With a 48VAC 50/60Hz AC coil and a 4NC contact configuration, it delivers an IEC AC-1 Ith of 45A for resistive loads. Flexible installation is supported via screw fixing or 35mm DIN rail mounting, while robust terminals and compact construction streamline panel assembly and wiring in OEM, maintenance and upgrade projects.

Built for durability, the BF26 series offers a mechanical life of 20,000,000 cycles and operates from -50 to 70°C (storage -60 to 80°C). Rated Ui 690 V and Uimp 6 kV, it meets IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents. UL/CSA horsepower is 15 HP at 480 V. Pollution degree 3, max altitude 3000 m, and 2.5 to 3 Nm terminal torque support dependable performance.

Key Benefits

• 45A AC-1 Ith handles demanding resistive load switching reliably.
• 48VAC 50/60Hz coil suits common control supply standards.
• Four NC poles provide normally closed switching across four circuits.
• DIN rail 35mm or screw mounting simplifies panel integration.
• Ui 690 V and Uimp 6 kV enhance insulation and surge withstand.
• UL/CSA 15 HP at 480 V supports appropriate motor applications.
• Mechanical life of 20,000,000 cycles reduces maintenance downtime.

Technical Specification

• Product type designation: BF26
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 510 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26T0A048 four-pole contactor (4NC), 48VAC coil
• Manufacturer documentation (downloadable)
• Original packaging

Applications

• Control of resistive loads up to 45A AC-1
• Motor control within UL/CSA 15 HP at 480 V ratings
• Power distribution and isolation switching in industrial panels
• HVAC, pump and fan control circuits
• Automation and process control cabinets

Safety note: Install and service only by qualified personnel. Isolate all power before work, observe the 2.5 to 3 Nm terminal torque, and follow applicable IEC/UL/CSA standards and local regulations.
