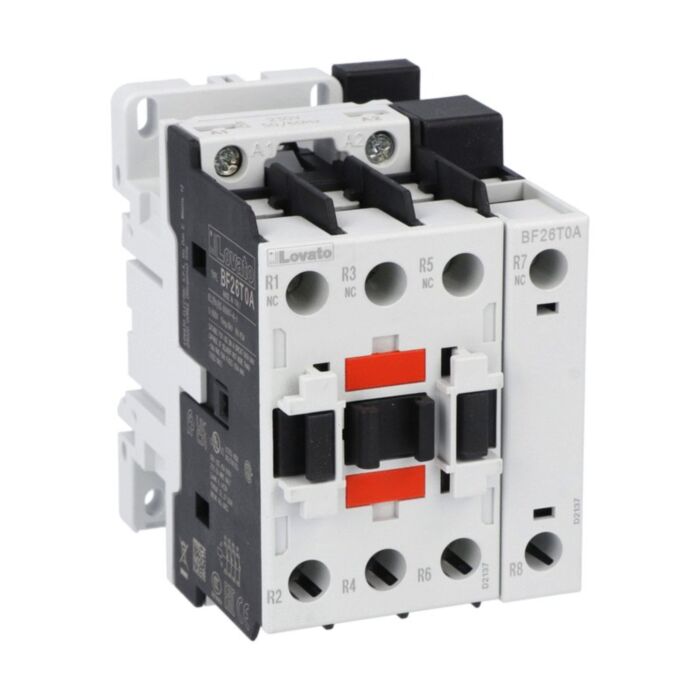

BF26T0A024 - 4P CONTACTOR NC 45A AC1 24V 50/60HZ
MPN: BF26T0A024
Special Price
£121.99
£101.66
Regular Price
£203.32
Why Choose the BF26T0A024?
Lovato’s BF26T0A024 four-pole contactor delivers dependable AC1 switching at 45A with a 24VAC 50/60Hz coil and 4NC contacts. With a rated insulation voltage of 690V and 6kV impulse withstand, it is built for reliable isolation and control. The unit supports screw fixing or 35mm DIN rail mounting and conforms to IEC/EN/BS 60947 and UL/CSA standards.
Engineered for durability, the BF26 platform offers a mechanical life of 20,000,000 cycles and operates from -50 to 70°C, with storage down to -60°C. Terminal screws tighten to 2.5 to 3 Nm for secure connections, and rated use extends to 3000 m altitude, pollution degree 3. A 15 HP rating at 480V (UL/CSA) broadens suitability across control panels handling resistive AC1 loads.
Key Benefits
- 45A Ith (AC1) rating for robust resistive load switching.
- 24VAC 50/60Hz coil simplifies integration with common control voltages.
- Four normally closed poles enable comprehensive isolation and control.
- High insulation: Ui 690V with 6kV impulse withstand voltage.
- Screw or 35mm DIN rail mounting accelerates installation and maintenance.
- Wide -50 to 70°C operating range suits harsh environments.
- 20,000,000-cycle mechanical life minimises downtime and replacement.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 510 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T0A024 four-pole contactor
- Installation and safety instructions
- Manufacturer datasheet (download)
Applications
- AC1 resistive load switching up to 45 A
- General industrial control panels and distribution boards
- Installations requiring 24VAC coil control circuits
- Systems built to IEC/EN/BS 60947 or UL/CSA standards
- Isolation and control using 4NC contact configuration
Frequently Asked Questions
What coil voltage and frequency does the Lovato BF26T0A024 use?
It uses a 24 VAC coil rated for 50/60Hz operation.
How many poles and what is the contact configuration?
It is a four-pole contactor with 4NC contacts.
What is the AC1 thermal current rating?
The IEC operating current Ith (AC1) is 45 A.
How can this contactor be mounted?
It can be mounted with screws or on a 35mm DIN rail.
Which standards and approvals does it meet?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1, and CSA C22.2 n° 60947-1/-4-1.
Safety note: Install and commission only by qualified personnel. Always de-energise circuits before work, tighten terminals to the specified torque, and operate within the stated ratings and standards.
| Manufacturer Part Number | BF26T0A024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975181492 |
| Coil Voltage | 24V |
