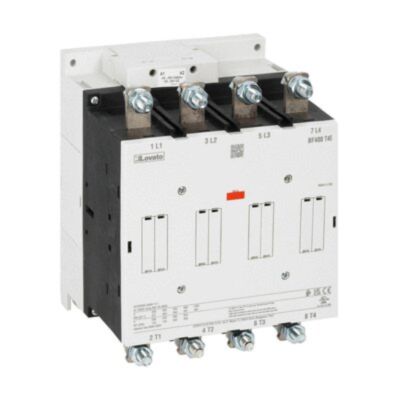

BF265T4E400 LOVATO MAXI 4P CONTACTOR 450A AC1 250-500VAC/DC

Why Choose the BF265T4E400?

Engineered for demanding installations, the Lovato BF265T4E400 four‑pole contactor delivers reliable high‑current switching. With an AC/DC coil rated 250…500VAC/DC and an IEC AC1 operating current of 450A, it suits heavy resistive duties. For motor loads at 400V (AC3), it handles 265A/132kW. Screw mounting ensures a secure fit, while compliance with IEC/EN/BS, UL and CSA standards supports safe, consistent performance in UK industrial control panels.

Built on the BF265 platform, this contactor combines robust electrical strength and endurance. It offers 1000V rated insulation (Ui) and 8kV impulse withstand, a mechanical life of 5,000,000 cycles, and dependable operation from -40 to 70°C up to 3000m altitude (pollution degree 3). These characteristics make it a dependable contactor choice for control panels and power distribution equipment where durability and safety margins matter.

Key Benefits

• 450 A AC1 rating for heavy-duty resistive load switching.
• 265 A/132 kW at 400 V for robust AC3 motor duty.
• Wide 250…500 V AC/DC coil range simplifies stocking and selection.
• Screw mounting provides secure, straightforward panel installation.
• Complies with IEC/EN/BS, UL and CSA standards for assurance.
• High insulation 1000 V Ui and 8 kV impulse withstand capability.
• Long mechanical life rated at 5,000,000 operating cycles.
• Reliable operation from -40 to 70 °C and up to 3000 m.

Technical Specification

• Product type designation: BF265
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Ith (IEC): 450 A
• Terminal tightening torque: 35 to 35 Nm
• Mechanical life: 5000000 cycles
• Operating temperature: -40 to 70 °C
• Storage temperature: -50 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF265T4E400 four-pole contactor
• Integrated AC/DC coil rated 250…500 V
• Product datasheet (downloadable)
• Manufacturer documentation and installation guidance

Applications

• Switching resistive loads up to 450 A (AC1)
• Motor control at 400 V up to 265 A/132 kW (AC3)
• Industrial power distribution and control panels
• Heavy industrial automation and machinery switching

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power before work and observe the stated ratings, standards and environmental limits for safe operation.
