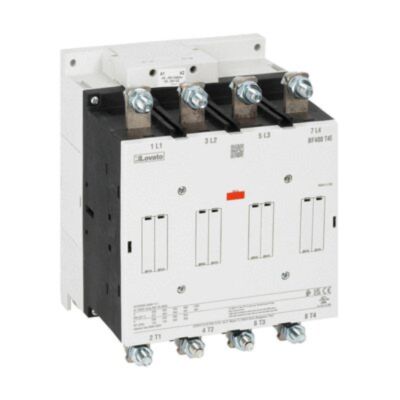

BF265T4E110 LOVATO MAXI 4P CONTACTOR 450A AC1 60-130VAC/DC
MPN: BF265T4E110
Special Price
£1,089.17
£907.64
Regular Price
£1,815.28
Why Choose the BF265T4E110?
Engineered for demanding industrial control, the Lovato BF265T4E110 four‑pole contactor combines high current capacity with a broad control range. It delivers IEC Ith (AC1) 450 A and AC‑3 performance of 265A /132Kw at 400V, with an AC/DC coil operating from 60…130 V. Rated Ui 1000 V and Uimp 8 kV, it’s built for robust, reliable switching.
Designed for easy installation, this screw‑mounted BF265 contactor offers a mechanical life of 5,000,000 cycles and dependable operation from -40 to 70 °C up to 3000 m altitude. It meets IEC/EN/BS 60947 and UL/CSA standards, with a 200 HP rating at 480 V. Ideal for AC‑1 loads to 450 A, it withstands demanding environments (pollution degree 3).
Key Benefits
- High AC-1 current capacity: Ith 450 A for heavy-duty loads.
- Strong AC-3 performance: 265A /132Kw at 400V for motor duty.
- Wide AC/DC coil range: 60…130 V simplifies control circuit design.
- Robust insulation: Ui 1000 V and 8 kV impulse withstand.
- Long mechanical life: up to 5,000,000 operating cycles.
- Reliable across extremes: -40 to 70 °C, altitude up to 3000 m.
- Easy, secure installation with screw mounting and specified terminal torque.
Technical Specification
- Product type designation: BF265
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 1000 V
- Rated impulse withstand voltage Uimp: 8 kV
- Ith (IEC): 450 A
- Terminal tightening torque: 35 to 35 Nm
- Mechanical life: 5000000 cycles
- Operating temperature: -40 to 70 °C
- Storage temperature: -50 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF265 four-pole contactor (SKU BF265T4E110)
- Integrated AC/DC control coil, 60…130 V
- Manufacturer datasheet (downloadable)
Applications
- AC-3 motor switching up to 265A at 400V.
- AC-1 resistive loads up to 450 A.
- Industrial control panels requiring 60…130 V AC/DC coils.
- Systems needing IEC/EN/BS and UL/CSA compliance.
Frequently Asked Questions
What coil voltage range does the BF265T4E110 support?
It uses an AC/DC coil operating from 60…130 V. This supports both AC and DC control supplies.
What are its current ratings for AC-1 and AC-3?
IEC Ith (AC1) is 450 A. At 400 V AC-3, it is rated 265A /132Kw.
Is it suitable for harsh environments and temperatures?
Yes, it operates from -40 to 70 °C and up to 3000 m altitude. Pollution degree 3 is supported.
Which standards does this contactor comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
How is the unit mounted and tightened?
It is screw mounted. Terminal tightening torque is 35 to 35 Nm.
Safety note: Always isolate power before installation or maintenance. Follow the rated voltages, specified terminal torque, and applicable standards to ensure safe, reliable operation.
| Manufacturer Part Number | BF265T4E110 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| KW Rating | 132kW |
| Number of Poles | 4 Pole |
| AC1 Amperage | 450A |
| Barcode | 8013975312575 |
