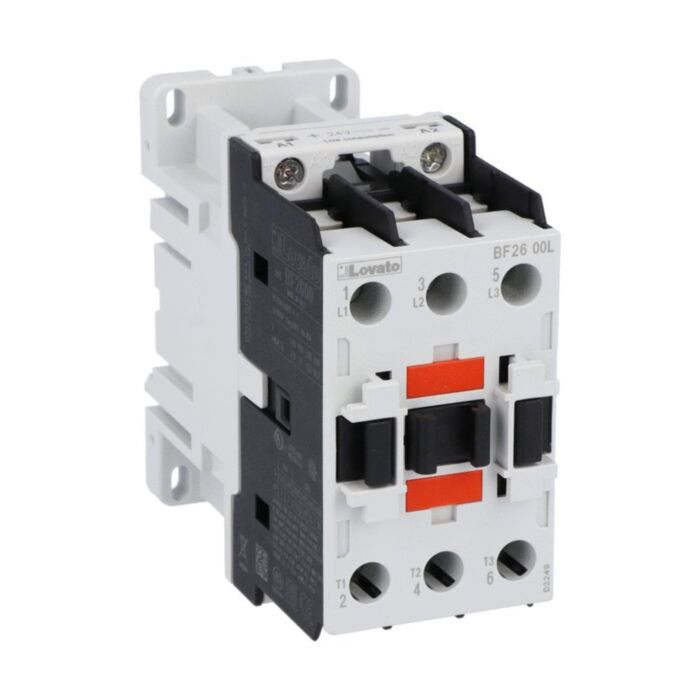

BF2600L048 - 3P CONTACTOR 26A AC3 48VDC LOW C.
MPN: BF2600L048
Special Price
£107.26
£89.38
Regular Price
£178.76
Why Choose the BF2600L048?
Engineered for dependable motor control, the Lovato BF2600L048 is a three‑pole contactor with a low‑consumption 48V DC coil. It delivers 26A AC3 at 400V and 45A AC1 performance, with a rated insulation voltage of 690 V and 6 kV impulse withstand. Flexible screw or 35mm DIN rail mounting simplifies panel integration.
Built for longevity and compliance, this BF26 series device offers 20,000,000 mechanical cycles and operates from −50 to 70 °C, up to 3000 m altitude, Pollution Degree 3. Terminal tightening torque is 2.5–3 Nm. Rated 15 HP at 480V (UL/CSA), it meets IEC/EN/BS 60947-1/-4-1, UL and CSA standards, and carries a Sustainability certification.
Key Benefits
- Low-consumption 48V DC coil reduces control power demand.
- 26A AC3 at 400V for reliable motor switching.
- 45A AC1 rating suits resistive and general-purpose loads.
- Screw or 35mm DIN rail mounting accelerates installation.
- High durability with 20,000,000 mechanical cycles tested.
- Wide operating range from −50 to 70 °C and up to 3000 m.
- Robust insulation: Ui 690 V and Uimp 6 kV.
Technical Specification
- Product type designation: BF26
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 560 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2600L048 three-pole contactor
- Installation and safety instructions
- Manufacturer datasheet (digital access)
Applications
- Motor starters for loads up to 26A AC3 at 400V
- Resistive and heating loads up to 45A AC1
- Pumps, fans and compressors in industrial and HVAC panels
- Machinery and control panels requiring 48V DC coil control
- General switching in automation systems with DIN rail mounting
Frequently Asked Questions
What is the coil voltage and type?
The coil is a low‑consumption DC type rated at 48 V.
What are the AC3 and AC1 ratings?
It is rated 26A AC3 at 400V and 45A AC1.
How can it be mounted?
It supports screw fixing or 35mm DIN rail mounting.
Which standards does it comply with?
It complies with IEC/EN/BS 60947-1/-4-1 and corresponding UL and CSA standards.
What is the operating temperature range?
The operating range is −50 to 70 °C; storage is −60 to 80 °C.
Safety note: Install and commission only by a qualified person. Isolate power, follow IEC/EN/BS 60947 guidelines, and tighten terminals to 2.5–3 Nm. Verify ratings and ambient conditions before energising.
| Manufacturer Part Number | BF2600L048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168677 |
| Coil Voltage | 48VDC |
