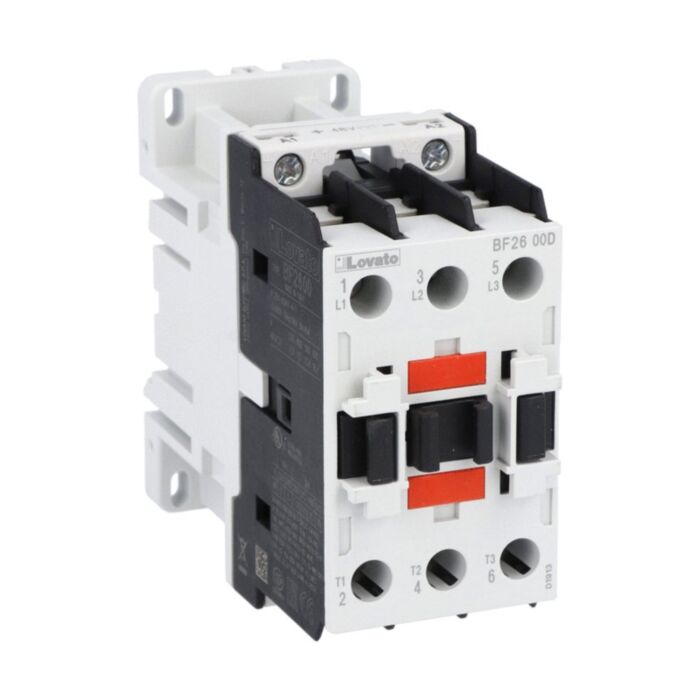

BF2600D220 - 3P CONTACTOR 26A AC3 220VDC
MPN: BF2600D220
Special Price
£123.82
£103.18
Regular Price
£206.36
Why Choose the BF2600D220?
The Lovato BF2600D220 is a three-pole contactor engineered for dependable motor and load switching. With AC-3 performance of 26A at 400 V (13 kW) and an AC-1 Ith of 45 A, it uses a 220 V DC coil for stable control. The SKU BF2600D220 supports screw fixing or 35 mm DIN rail mounting, simplifying panel integration for industrial control, machinery, and building services where reliable, standards-compliant switching is essential.
The BF26 series designation underlines robust design, with a mechanical life of 20,000,000 cycles and a wide -50 to 70 °C operating range. Rated Ui 690 V and Uimp 6 kV, it is suitable up to 3000 m altitude and pollution degree 3. Conformance to IEC/EN/BS 60947 and UL/CSA standards supports compliance in UK and global panels, with sustainable manufacturing noted by certification.
Key Benefits
- AC-3 26A at 400 V delivers dependable motor switching up to 13 kW.
- 220 V DC coil provides stable control in DC-supplied panels.
- Wide -50 to 70 °C operating range suits harsh environments.
- 20,000,000 mechanical cycles reduce downtime and maintenance.
- Screw or 35 mm DIN rail mounting accelerates panel installation.
- Rated Ui 690 V and Uimp 6 kV for strong electrical endurance.
- Complies with IEC/EN/BS and UL/CSA standards for assured conformity.
- Three-pole design handles AC-1 loads up to 45 A.
Technical Specification
- Product type designation: BF26
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 564 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2600D220 three-pole contactor
- Manufacturer data sheet (digital access)
- Mounting and safety instructions
- Original manufacturer packaging
Applications
- Motor control up to 13 kW at 400 V AC-3
- Resistive load switching up to 45 A AC-1
- Industrial control panels and distribution boards
- HVAC, pumps, fans and compressors
- Automation systems requiring 220 V DC coil control
Frequently Asked Questions
What is the coil voltage and type?
It has a DC coil rated at 220 V.
What are the AC-3 and AC-1 ratings?
AC-3 is 26A at 400 V (13 kW), and AC-1 Ith is 45 A.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
What is the operating temperature range?
The operating temperature range is -50 to 70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA equivalents.
Safety note: Only qualified personnel should install and commission this contactor. Isolate power, verify the 220 V DC coil supply, and follow IEC/EN/BS 60947 procedures and site safety rules before operation.
| Manufacturer Part Number | BF2600D220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166598 |
| Coil Voltage | 220VDC |
