BF2600D110 - 3P CONTACTOR 26A AC3 110VDC

Why Choose the BF2600D110?

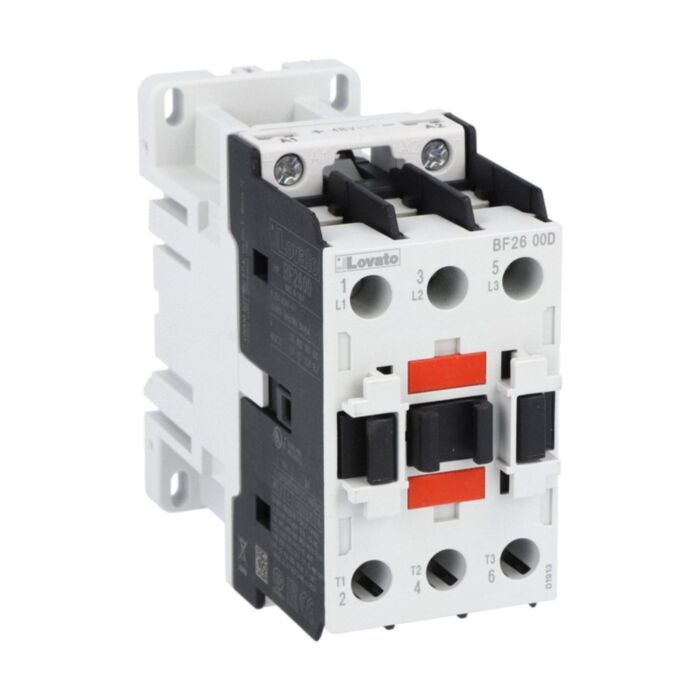

Designed for reliable motor and power switching, the Lovato BF2600D110 three-pole contactor combines a 110 V DC coil with robust AC3 performance. With SKU BF2600D110, this contactor delivers 26 A AC3 at 400 V (13 kW) and an Ith of 45 A (AC1). It mounts via screw or 35 mm DIN rail and suits control panels needing compact, standards-compliant switching.

Engineered for endurance and safety, the BF26 series contactor offers 20,000,000 mechanical operations, Ui 690 V, and Uimp 6 kV. Rated for -50 to 70 °C operation, storage -60 to 80 °C, and use up to 3000 m (pollution degree 3), it meets IEC/EN/BS 60947-1 and 60947-4-1, with UL and CSA equivalents. Terminal torque is 2.5 to 3 Nm for secure connections.

Key Benefits

• 26A AC3 at 400V for motor switching up to 13 kW
• 110V DC coil integrates easily with common DC control circuits
• Dual mounting options: screw fix or 35 mm DIN rail
• High endurance with 20,000,000 mechanical life cycles
• Wide operating temperature range from -50 to 70 °C
• Robust insulation: Ui 690 V and Uimp 6 kV
• Conforms to IEC/EN/BS, UL and CSA standards for safety

Technical Specification

• Product type designation: BF26
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 560 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF2600D110 three-pole contactor unit
• Manufacturer datasheet (downloadable)
• Product packaging and identification labels

Applications

• Motor control up to 26A AC3 at 400V (13 kW)
• General-purpose switching for AC1 loads up to 45 A
• Control panels requiring 110 V DC coil actuation
• Installations using screw or 35 mm DIN rail mounting
• Systems designed to IEC/EN/BS 60947-4-1 compliance

Safety note: Install and service only by qualified personnel. De-energise circuits before work, observe the stated ratings and environmental limits, and tighten terminals to 2.5–3 Nm to ensure safe operation.
