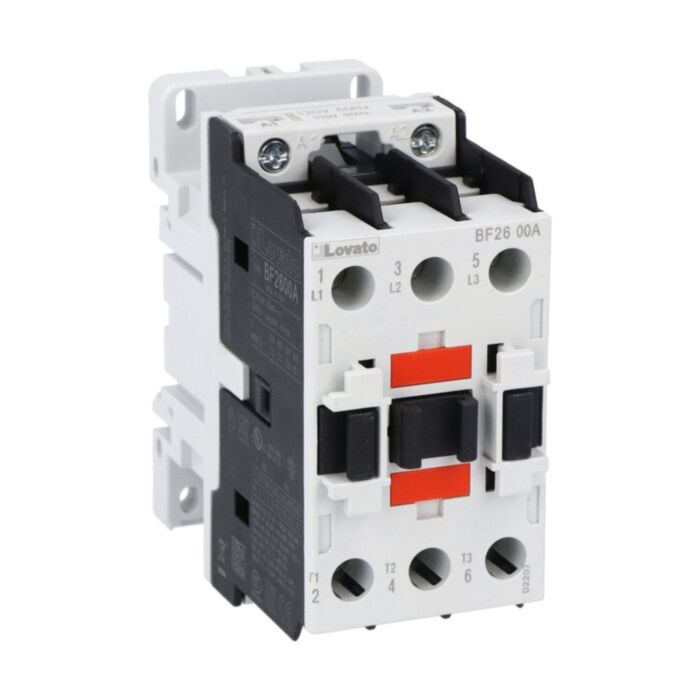

BF2600A23060 - 3P CONTACTOR 26A AC3 230/60
MPN: BF2600A23060
Special Price
£80.47
£67.06
Regular Price
£134.12
Why Choose the BF2600A23060?
The Lovato BF2600A23060 is a robust three-pole contactor engineered for dependable motor control. With AC-3 26A (13 kW at 400 V) performance and a 230 V 60 Hz AC coil, it suits demanding switching duties. Flexible screw or 35 mm DIN rail mounting simplifies panel integration, while the BF26 series design aligns with IEC/EN/BS 60947 standards for consistent, compliant operation.
Built for durability, this contactor offers 690 V rated insulation, 6 kV impulse withstand and a mechanical life of 20,000,000 cycles. It operates from −50 to 70 °C and up to 3000 m altitude, with 2.5–3 Nm terminal torque. UL/CSA ratings include 15 HP at 480 V, and a 420 g build aids straightforward installation.
Key Benefits
- AC-3 26A at 400 V, delivering 13 kW motor switching capacity.
- 230 V 60 Hz AC coil for reliable actuation in control circuits.
- Versatile 3-pole design for three-phase load switching.
- Screw or 35 mm DIN rail mounting for fast panel installation.
- High mechanical life: 20,000,000 cycles for long-term service.
- Robust insulation: Ui 690 V and Uimp 6 kV withstand.
- Wide operating temperature range, from −50 to 70 °C.
- Compliant with IEC/EN/BS 60947 and UL/CSA for assured conformity.
Technical Specification
- Product type designation: BF26
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 420 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2600A23060 3-pole contactor (BF26 series)
- Manufacturer datasheet (downloadable)
- Original manufacturer packaging
Applications
- Three-phase motor control in AC-3 duty up to 26A at 400 V
- Pumps, fans and compressors within AC-3 performance limits
- Resistive load switching in AC-1 applications up to 45 A
- Control panels using 35 mm DIN rail or screw mounting
Frequently Asked Questions
What coil voltage and frequency does the BF2600A23060 use?
It has a 230 V AC, 60 Hz coil.
What is the AC-3 rating for this contactor?
It is rated 26A (13 kW) at 400 V in AC-3 duty.
How can this contactor be mounted?
It mounts via screws or on a 35 mm DIN rail.
Which standards does this model conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947, and CSA C22.2 60947.
What is the operating temperature range?
The operating range is −50 to 70 °C.
Safety note: Installation and maintenance must be performed by qualified personnel. Verify the supply matches the 230 V 60 Hz coil, de-energise before wiring, and tighten terminals to 2.5–3 Nm in accordance with applicable standards.
| Manufacturer Part Number | BF2600A23060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161067 |
| Coil Voltage | 230V |
