BF2600A22060 - 3P CONTACTOR 26A AC3 220/60
MPN: BF2600A22060
Special Price
£80.47
£67.06
Regular Price
£134.12
Why Choose the BF2600A22060?

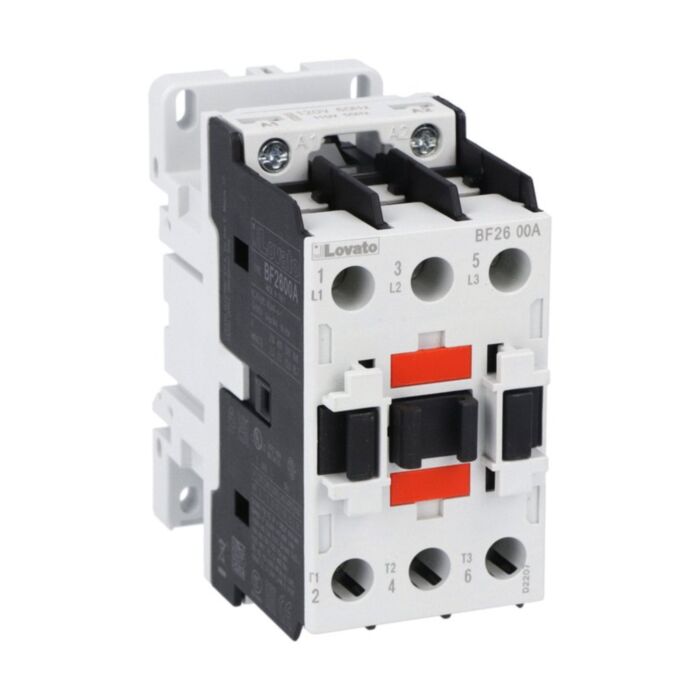

Engineered for reliable motor control, the Lovato BF2600A22060 three-pole contactor delivers AC-3 performance of 26A at 400V with a 13 kW rating. Its AC coil (60Hz) operates at 220VAC for straightforward control wiring. The BF26 series design supports screw fixing or 35mm DIN rail mounting, ideal for compact, standardised panel builds.
Built for demanding environments, it offers Ui 690V and Uimp 6kV insulation performance, with mechanical life of 20,000,000 cycles for long service. Rated from -50 to 70 °C and up to 3000 m altitude with Pollution Degree 3, it meets IEC/EN/BS 60947, UL and CSA standards. Terminal torque 2.5–3 Nm ensures secure connections.
Key Benefits
- AC-3 26A at 400V, 13 kW motor switching capability.
- 220VAC 60Hz AC coil for straightforward control integration.
- Screw or 35mm DIN rail mounting simplifies panel assembly.
- High insulation: Ui 690V and impulse withstand Uimp 6kV.
- Wide operating range: -50 to 70 °C, up to 3000 m.
- Long mechanical life rated at 20,000,000 cycles.
- Secure terminations with 2.5–3 Nm terminal tightening torque.
- UL/CSA 15 HP at 480V and IEC/EN/BS 60947 compliance.
Technical Specification
- Product type designation: BF26
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 418 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2600A22060 three-pole contactor (BF26 series)
- Manufacturer datasheet (downloadable)
- Basic installation and safety information
- Factory packaging
Applications
- Motor starters for pumps, fans and compressors
- Conveyor and material handling drives
- HVAC and building services control panels
- General-purpose industrial machinery switching
- OEM equipment requiring compact three-pole contactors
Frequently Asked Questions
What coil voltage and frequency does this contactor use?
It has an AC coil rated 220VAC at 60Hz.
Can it be mounted on a DIN rail?
Yes. It supports screw mounting or 35mm DIN rail mounting.
What is the AC-3 rating at 400V?
It is rated 26A with a motor power of 13 kW at 400V.
What environmental limits does it support?
The operating range is -50 to 70 °C and up to 3000 m altitude, Pollution Degree 3.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA 60947-1/-4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before work, observe specified torque and ratings, and follow relevant standards and local regulations.
| Manufacturer Part Number | BF2600A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975161050 |
| Coil Voltage | 220V |
