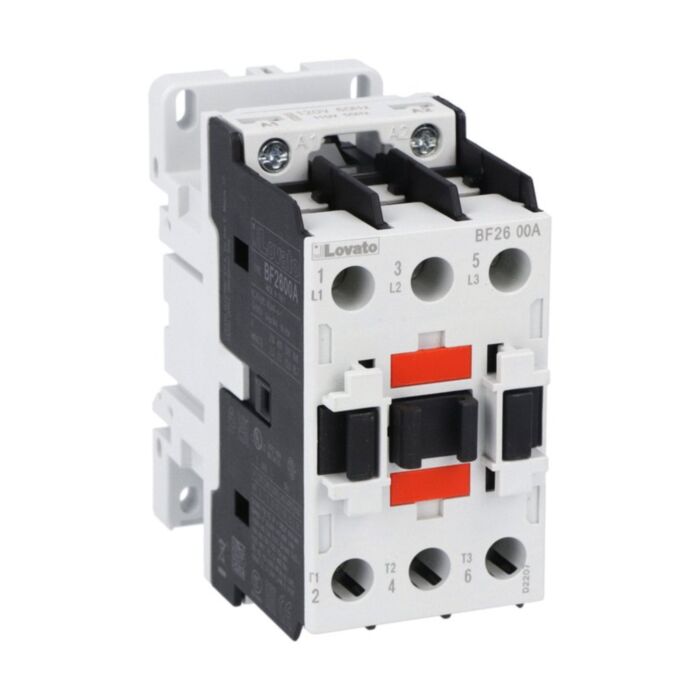

BF2600A04860 - 3P CONTACTOR 26A AC3 48/60

Why Choose the BF2600A04860?

Engineered for reliable motor control, the Lovato BF2600A04860 is a three‑pole contactor with a 48VAC 60Hz coil. Delivering 26A AC3 (13Kw) at 400V and 45A AC1, it suits a wide range of industrial switching duties. The BF26 series design supports screw or 35mm DIN rail mounting for fast panel integration, helping OEMs and maintenance teams standardise on a compact, robust solution.

Built to endure harsh environments, this BF26 contactor offers Ui 690 V and Uimp 6 kV, with a mechanical life of 20,000,000 cycles. It operates from −50 to 70 °C and up to 3000 m altitude, Pollution Degree 3. Fully compliant with IEC/EN/BS and UL/CSA standards, it provides dependable performance in motor starters and control panels where durability and safety matter.

Key Benefits

• 26A AC3 at 400V, suitable for motors up to 13Kw.
• 45A AC1 rating for resistive and heating loads.
• 48VAC 60Hz coil for straightforward control circuit integration.
• Screw or 35mm DIN rail mounting for quick installation.
• High endurance: mechanical life of 20,000,000 cycles.
• Rated insulation 690 V and impulse withstand 6 kV.
• Operates from −50 to 70 °C, up to 3000 m altitude.
• Compliant with IEC/EN/BS, UL and CSA standards.

Technical Specification

• Product type designation: BF26
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 45 A
• Terminal tightening torque: 2.5 to 3 Nm
• Weight: 420 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF26 three‑pole contactor (SKU BF2600A04860)
• Installation and safety leaflet
• Manufacturer datasheet (downloadable)
• Original packaging

Applications

• Three‑phase motor starters up to 26A AC3 at 400V (13Kw)
• Pumps, fans, compressors and conveyors in industrial automation
• Resistive and heating loads up to 45A AC1
• Control panels and OEM machinery requiring DIN rail contactors
• General-purpose switching in harsh temperature environments

Safety note: Installation and maintenance must be performed by qualified personnel in accordance with applicable standards and the manufacturer’s instructions.
