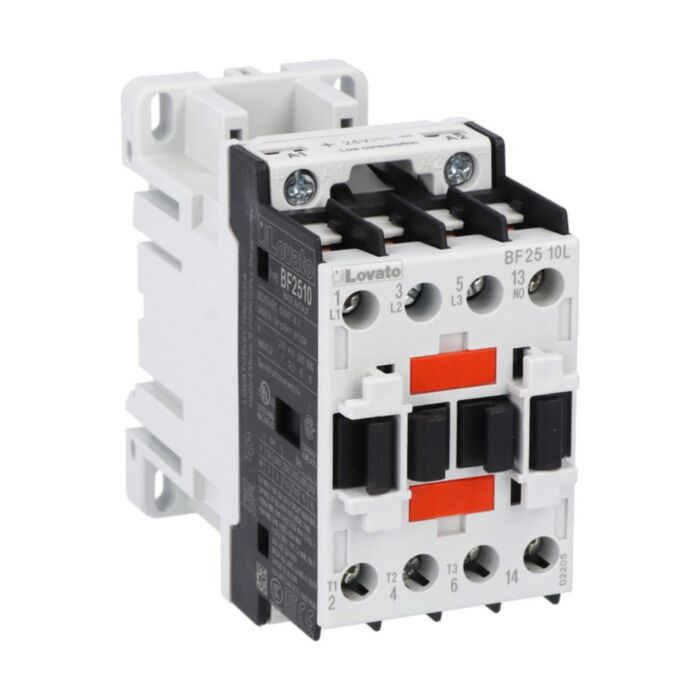

BF2510L024 - 3P CONTACTOR 1NO 25A AC3 24VDC LOW C.
MPN: BF2510L024
Special Price
£101.98
£84.98
Regular Price
£169.96
Why Choose the BF2510L024?
Engineered for reliable motor and load control, the Lovato BF2510L024 three‑pole contactor delivers 25A AC‑3 performance at 400V with a low‑consumption 24V DC coil. The BF2510L024 includes a built‑in 1NO auxiliary contact and supports screw or 35mm DIN rail mounting, streamlining panel assembly. With Ui rated to 690V and Uimp to 6kV, it suits demanding industrial applications requiring robust switching capability.
Built to last, this BF25 series device offers 32A Ith (AC1), UL/CSA 15 HP at 480V, and a mechanical life of 20,000,000 cycles. It operates from -50 to 70°C, with terminal tightening torque of 1.5–1.8 Nm and a 502 g build. Rated for pollution degree 3 and use up to 3000 m altitude, it meets IEC/EN/BS 60947 and UL/CSA standards.
Key Benefits
- 25A AC-3 at 400V for dependable motor switching performance
- Low-consumption 24V DC coil reduces control power demand
- Built-in 1NO auxiliary contact simplifies signalling
- Dual mounting: screw fix or 35mm DIN rail
- Wide -50 to 70°C operating range for harsh environments
- Long mechanical life of 20,000,000 cycles for durability
- High insulation: Ui 690V and Uimp 6kV for overvoltage resilience
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 502 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2510L024 three-pole contactor
- Integrated 1NO auxiliary contact
- Installation instructions
- Manufacturer packaging
Applications
- Motor starters up to 12.5 kW at 400V AC-3
- Resistive load switching up to 32 A AC-1
- Industrial control panels with 24 V DC control circuits
- HVAC, pumps and fans in general-purpose automation
- Conveyor and material handling equipment control
Frequently Asked Questions
What is the coil voltage and type?
It uses a low-consumption DC coil rated at 24 V. This supports efficient control power usage.
How many poles and auxiliary contacts are included?
It is a three-pole contactor with one built-in NO auxiliary contact.
What are the key current and power ratings?
It is rated 25A AC-3 at 400V (12.5 kW) and 32A Ith (AC1).
How can the contactor be mounted?
It supports screw mounting or 35mm DIN rail installation for flexible panel layouts.
Which standards does it comply with?
It meets IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power and verify ratings and environmental conditions before commissioning.
| Manufacturer Part Number | BF2510L024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168592 |
| Coil Voltage | 24VDC |
