BF2510D048 - 3P CONTACTOR 1NO 25A 48VDC
MPN: BF2510D048
Special Price
£117.88
£98.23
Regular Price
£196.45
Why Choose the BF2510D048?

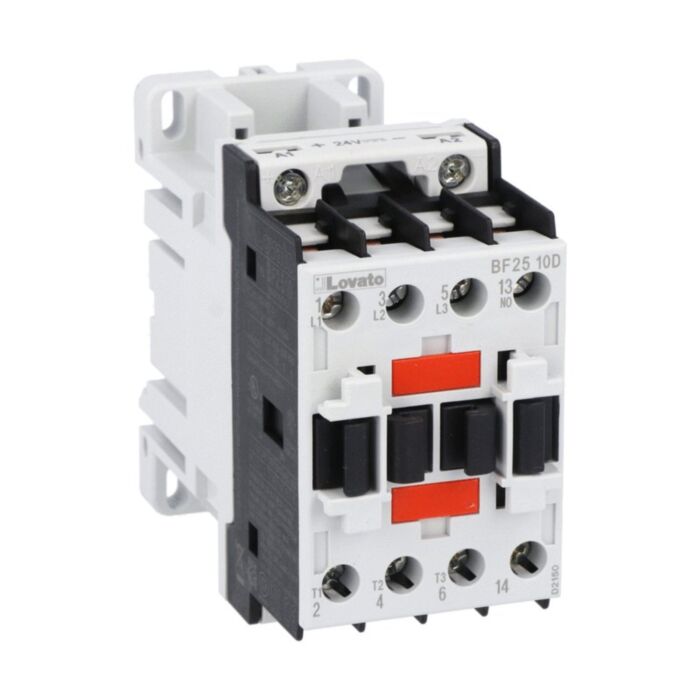

Lovato’s BF2510D048 is a robust three‑pole contactor engineered for dependable motor and power switching. Featuring a 48 V DC coil and a built‑in 1NO auxiliary contact, it delivers 25 A AC‑3 performance at 400 V (12.5 kW), with a 32 A AC‑1 thermal rating. Rated insulation to 690 V and 6 kV impulse withstand support demanding panels, while screw or 35 mm DIN rail mounting streamlines installation.
Part of the BF25 series, this contactor withstands harsh conditions from −50 to 70 °C and up to 3000 m altitude, Pollution Degree 3. With 20,000,000 mechanical operations and compliance to IEC/EN/BS 60947-1 and 60947-4-1, UL and CSA standards, it offers long service life and assured conformity for UK panel builders and OEMs seeking reliable switching performance.
Key Benefits
- 25 A AC-3 at 400 V, 12.5 kW motor duty performance
- 48 V DC coil for reliable control circuit compatibility
- Three-pole design with integrated 1NO auxiliary contact
- Rated insulation 690 V and 6 kV impulse withstand
- Screw or 35 mm DIN rail mounting simplifies installation
- Wide operating range: -50 to 70 °C, up to 3000 m
- Long mechanical life: 20,000,000 cycles for durability
- Conforms to IEC/EN/BS 60947-1/-4-1, UL and CSA
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2510D048 three-pole contactor (BF25 series)
- Integrated 1NO auxiliary contact
- Manufacturer datasheet (PDF download)
- Basic installation and safety information
Applications
- AC-3 motor starters up to 12.5 kW at 400 V
- General power switching to 25 A AC-3 duty
- Control panels requiring 48 V DC coil contactors
- HVAC, pumps, fans and conveyors within rating
- OEM and panel builder projects to IEC 60947
Frequently Asked Questions
What is the coil voltage and type of the BF2510D048?
It has a 48 V DC coil, suitable for 48 V control circuits.
What are its AC-3 and AC-1 current ratings?
It is rated 25 A AC-3 at 400 V (12.5 kW) and 32 A AC-1.
How can this contactor be mounted in a control panel?
It supports screw mounting or 35 mm DIN rail installation.
What auxiliary contacts are included as standard?
It includes one built-in 1NO auxiliary contact.
Which standards does the product comply with?
IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 No. 60947-1 and 60947-4-1.
Safety note: Install and commission only by qualified personnel. Isolate all supplies before work, observe the rated limits and environmental conditions, and apply the specified terminal tightening torque.
| Manufacturer Part Number | BF2510D048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166482 |
| Coil Voltage | 48VDC |
