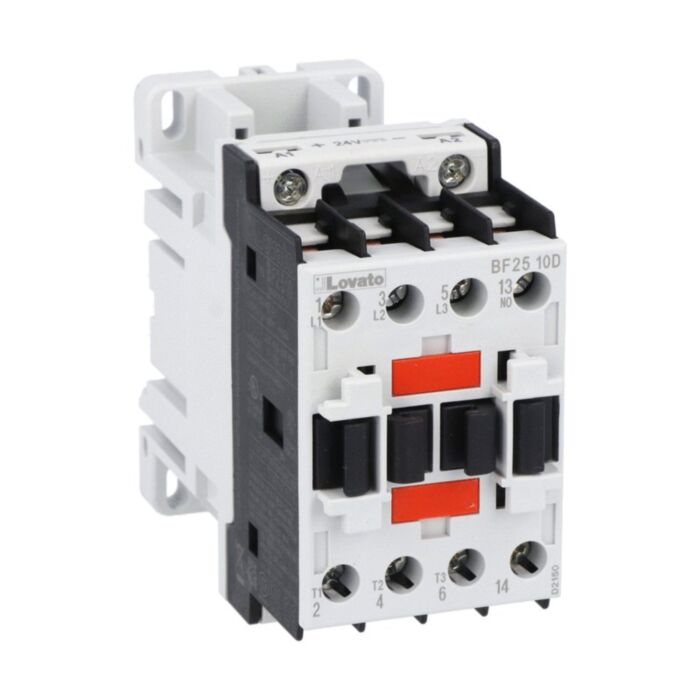

BF2510D024 Lovato contactor 3 pole AC3:25A 12.5kw 24vdc coil 1no aux
MPN: BF2510D024
Special Price
£117.88
£98.23
Regular Price
£196.45
Why Choose the BF2510D024?
Built for reliable motor control, the Lovato BF2510D024 three-pole contactor delivers 25A AC3 performance at 400V with a 24V DC coil and a built-in 1NO auxiliary contact. The BF25 series design supports screw or 35mm DIN rail mounting, making installation quick in panels. SKU BF2510D024 suits industrial switching tasks where durable, standards-compliant Contactors are required.
Rated Ui 690 V and Uimp 6 kV, this BF25 contactor withstands demanding environments with a mechanical life of 20,000,000 cycles. Operating from -50 to 70 °C and up to 3000 m altitude, it meets IEC/EN/BS 60947 and UL/CSA standards and offers 15 HP at 480 V. Ideal for robust control in OEM panels and maintenance upgrades.
Key Benefits
- 25A AC3 at 400V for dependable three-phase motor switching.
- 24V DC coil provides precise, low-power control compatibility.
- Integrated 1NO auxiliary contact simplifies circuit indication or interlocking.
- Screw or 35mm DIN rail mounting speeds panel installation.
- High insulation: Ui 690 V and Uimp 6 kV resilience.
- Extreme endurance with 20,000,000 mechanical operating cycles.
- Wide operating range: -50 to 70 °C, up to 3000 m altitude.
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2510D024 contactor unit
- Integrated 1NO auxiliary contact
- Manufacturer datasheet (downloadable)
- Original manufacturer packaging
Applications
- Three-phase motor control up to 25A AC3 at 400V
- Pumps, fans, compressors and conveyors
- General industrial machinery and OEM control panels
- Resistive load switching up to 32 A AC1
- Maintenance replacements and panel upgrades
Frequently Asked Questions
What is the coil voltage and type?
It has a 24 V DC coil, suitable for DC control circuits.
How many auxiliary contacts are included?
It includes one built-in 1NO auxiliary contact.
Can it be mounted on DIN rail?
Yes, it mounts on 35 mm DIN rail or by screws.
What is the AC3 rating and horsepower at 480 V?
The AC3 rating is 25 A at 400 V, and it is rated 15 HP at 480 V.
Which standards does it comply with?
It meets IEC/EN/BS 60947-1/-4-1 and UL/CSA 60947 standards.
Safety note: Install and commission only by qualified personnel. Isolate power before work, apply 1.5–1.8 Nm terminal torque, and operate within specified temperatures, altitude and pollution degree 3.
| Manufacturer Part Number | BF2510D024 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| KW Rating | 12.5kW |
| Number of Poles | 3 Pole |
| Coil Voltage | 24VDC |
| AC3 Amperage | 25A |
| AC1 Amperage | 32A |
| Auxillaries | 1NO |
| Barcode | 8013975166475 |
