BF2510D012 - 3P CONTACTOR 1NO 25A 12VDC
MPN: BF2510D012
Special Price
£117.88
£98.23
Regular Price
£196.45
Why Choose the BF2510D012?

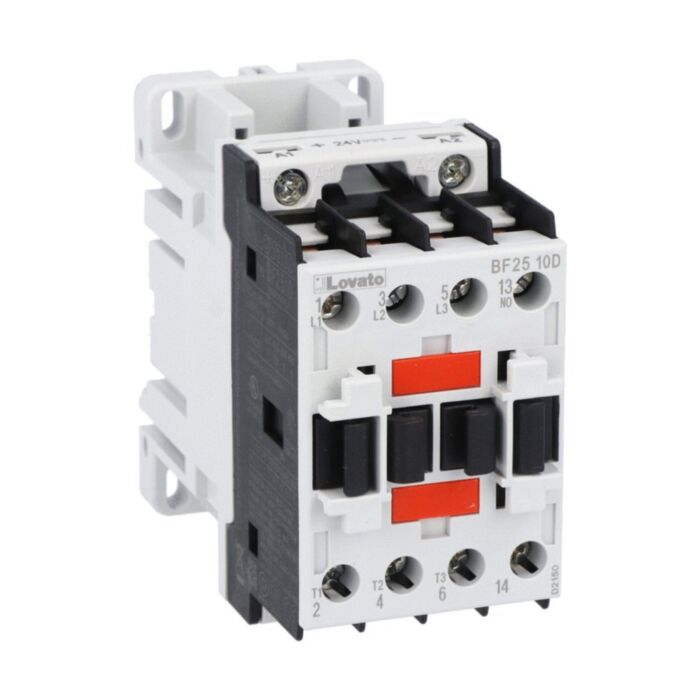

Lovato’s BF2510D012 is a robust three‑pole contactor engineered for dependable motor and power switching. This DC‑coil contactor (12VDC) delivers IEC AC3 performance of 25A at 400V (12.5Kw) and includes a built‑in 1NO auxiliary contact for signalling or interlocks. Designed for quick panel integration, the compact unit mounts via screws or on 35mm DIN rail, making the BF2510D012 ideal for OEMs and panel builders seeking reliable, space‑efficient control components.
Built on the BF25 platform, this contactor offers durability with a mechanical life of 20,000,000 cycles and wide environmental capability. Rated insulation voltage is 690 V with 6 kV impulse withstand, and it operates from −50 to 70 °C up to 3000 m altitude, pollution degree 3. Conformity to IEC/EN/BS, UL and CSA standards supports global compliance, while 1.5–1.8 Nm terminal torque ensures secure, repeatable connections.
Key Benefits
- 25A AC3 at 400V handles motors up to 12.5Kw.
- 12 VDC coil simplifies low‑voltage control circuits.
- Built‑in 1NO auxiliary enables signalling or interlocking.
- Screw or 35mm DIN rail mounting for fast installation.
- Operates from −50 to 70 °C for harsh environments.
- High mechanical life of 20,000,000 cycles reduces downtime.
- 690 V Ui and 6 kV Uimp enhance insulation performance.
- Compliant with IEC/EN/BS, UL and CSA standards.
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 496 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2510D012 three-pole contactor
- Integrated 1NO auxiliary contact
- Product datasheet and basic installation information
Applications
- Motor starters up to 12.5Kw at 400 V AC3
- Pumps, fans and HVAC control panels
- Conveyors and material handling machinery
- General-purpose power switching in industrial automation
- OEM equipment requiring 12 VDC coil control
Frequently Asked Questions
What is the coil voltage and type?
It has a DC coil rated at 12 VDC.
How many poles and what auxiliary contacts are included?
It is a three‑pole contactor and includes a built‑in 1NO auxiliary contact.
What is the AC3 rating at 400 V?
IEC AC3 rating is 25A at 400V, suitable for up to 12.5Kw loads.
How can it be mounted in a panel?
Mount using screws or on a 35mm DIN rail.
What operating temperature range does it support?
It operates from −50 to 70 °C and can be used up to 3000 m altitude.
Safety note: Installation and maintenance should be performed by qualified personnel. Observe the specified terminal tightening torque (1.5–1.8 Nm) and applicable standards to ensure safe operation.
| Manufacturer Part Number | BF2510D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166468 |
| Coil Voltage | 12VDC |
