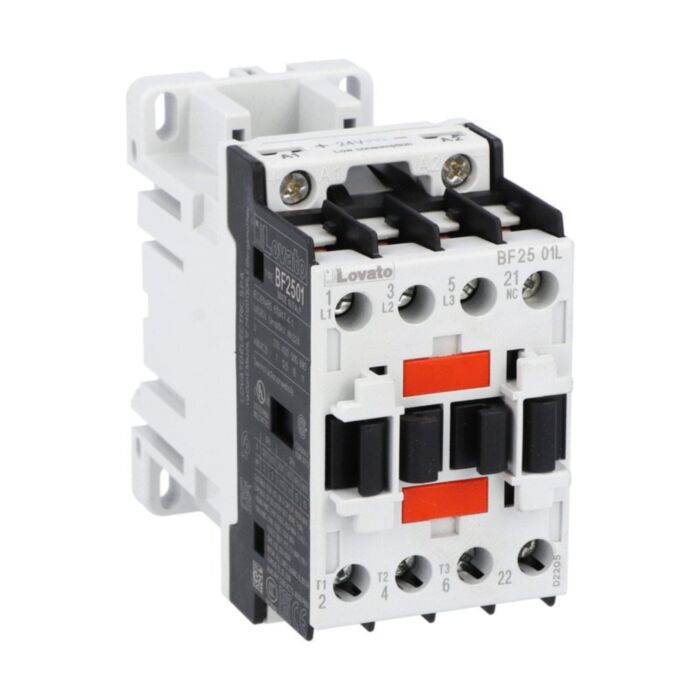

BF2501L048 - 3P CONTACTOR 1NC 25A AC3 48VDC LOW C.
MPN: BF2501L048
Special Price
£101.98
£84.98
Regular Price
£169.96
Why Choose the BF2501L048?
Lovato BF2501L048 is a three-pole contactor designed for robust motor and load control. It features a 48 V DC low-consumption coil and delivers 25A AC-3 performance at 400 V with the BF25 platform. A built-in 1NC auxiliary with mirror contact function provides dependable status feedback. Compact and versatile, it suits control panels requiring reliable switching and clear auxiliary signalling.
Engineered for demanding environments, this contactor offers 690 V rated insulation (Ui), 6 kV impulse withstand (Uimp), and a mechanical life of 20,000,000 cycles. Operates from -50 to 70 °C and up to 3000 m altitude. Screw or 35 mm DIN rail mounting simplifies installation. Compliant with IEC/EN/BS 60947 and UL/CSA standards, with 15 HP rating at 480 V.
Key Benefits
- 25A AC-3 at 400 V for dependable motor switching
- Low-consumption 48 V DC coil reduces control power demand
- Built-in 1NC mirror contact for reliable feedback interlocking
- Wide -50 to 70 °C operating temperature range
- High 690 V insulation and 6 kV impulse withstand ratings
- DIN rail 35 mm or screw mounting for flexible installation
- Long mechanical life rated to 20,000,000 cycles
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2501L048 three-pole contactor unit
- Integrated 1NC auxiliary contact (mirror contact)
- Standard manufacturer documentation (where applicable)
Applications
- Motor control up to 25A AC-3 at 400 V
- Industrial control panels and automation assemblies
- Resistive load switching within AC1 32 A limits
- Equipment requiring DIN rail or screw-mounted contactors
Frequently Asked Questions
What coil voltage and type does the BF2501L048 use?
It uses a 48 V DC low-consumption coil.
Does this contactor include an auxiliary contact?
Yes, it has a built-in 1NC auxiliary contact with mirror contact function.
How can the contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
What are the environmental and durability ratings?
It operates from -50 to 70 °C up to 3000 m and has a 20,000,000-cycle mechanical life.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1, and CSA C22.2 60947-1/-4-1.
Safety note: Installation and maintenance should be performed by qualified personnel. Always isolate power before work, observe the specified torque and ratings, and follow applicable standards.
| Manufacturer Part Number | BF2501L048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168530 |
| Coil Voltage | 48VDC |
