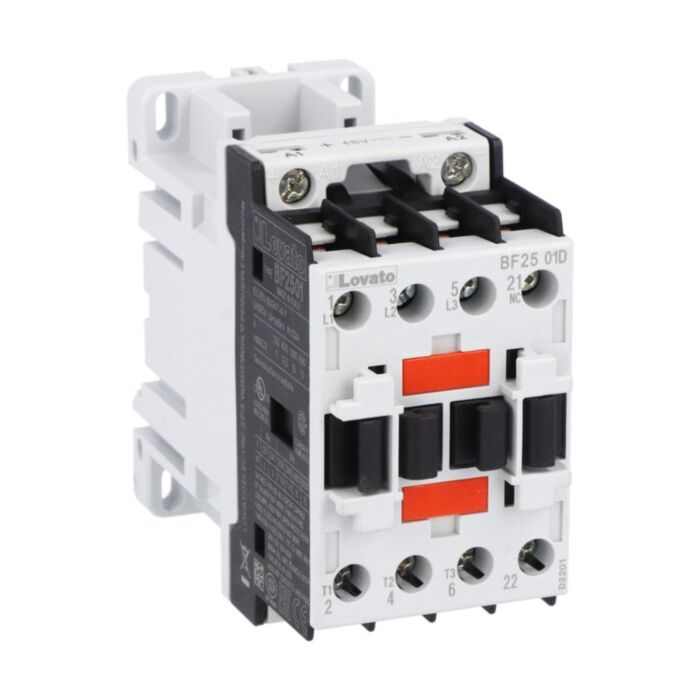

BF2501D110 - 3P CONTACTOR 1NC 25A 110VDC
MPN: BF2501D110
Special Price
£117.88
£98.23
Regular Price
£196.45
Why Choose the BF2501D110?
Lovato’s BF2501D110 three‑pole contactor (SKU: BF2501D110) delivers dependable motor switching with AC‑3 performance of 25 A/12.5 kW at 400 V and a robust AC‑1 rating of 32 A. A 110 V DC coil ensures stable operation, while the built‑in 1NC auxiliary contact features mirror contact functionality for reliable status feedback. Designed for control panels requiring compact, high‑duty switching.
Part of the BF25 range, this 3‑pole device supports screw or 35 mm DIN rail mounting and is rated Ui 690 V with 6 kV impulse withstand. Built to last with 20,000,000 mechanical cycles, it operates from −50 to +70 °C up to 3000 m altitude. Conforms to IEC/EN/BS 60947 and UL/CSA standards for assured compliance.
Key Benefits
- 25 A AC-3 at 400 V; 12.5 kW motor duty capability.
- 110 V DC coil for stable operation and precise control.
- Integrated 1NC auxiliary with mirror contact for reliable status feedback.
- Dual mounting: screw or 35 mm DIN rail for flexible installation.
- 20,000,000 mechanical cycles for long service life and durability.
- Rated insulation 690 V Ui and 6 kV impulse withstand.
- Wide operating temperature −50 to +70 °C for extreme conditions.
- IEC/EN/BS 60947, UL and CSA conformity supports compliance and quality assurance.
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 492 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2501D110 three-pole contactor
- Integrated 1NC auxiliary contact (mirror contact function)
- Manufacturer documentation
Applications
- Motor control up to 12.5 kW at 400 V (AC-3 duty)
- General-purpose resistive loads up to 32 A (AC-1)
- Industrial control panels, MCCs and OEM machinery
- DIN rail assemblies requiring compact three-pole contactors
- Pump, fan and conveyor switching within rated limits
Frequently Asked Questions
What coil voltage and type does the BF2501D110 use?
It has a DC coil rated at 110 V.
What are the main current ratings?
AC-3 is 25 A/12.5 kW at 400 V; AC-1 thermal current Ith is 32 A.
Does it include an auxiliary contact?
Yes, it includes one built-in 1NC auxiliary with a mirror contact function.
How can this contactor be mounted?
It can be mounted by screws or on a 35 mm DIN rail.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1 and equivalent UL/CSA standards.
Safety note: Installation must be performed by qualified personnel. Isolate power before work and follow the manufacturer instructions and applicable IEC/EN/BS 60947 standards, observing the stated ratings and temperatures.
| Manufacturer Part Number | BF2501D110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166437 |
| Coil Voltage | 110VDC |
