BF2501D048 - 3P CONTACTOR 1NC 25A 48VDC
MPN: BF2501D048
Special Price
£113.34
£94.45
Regular Price
£188.89
Why Choose the BF2501D048?

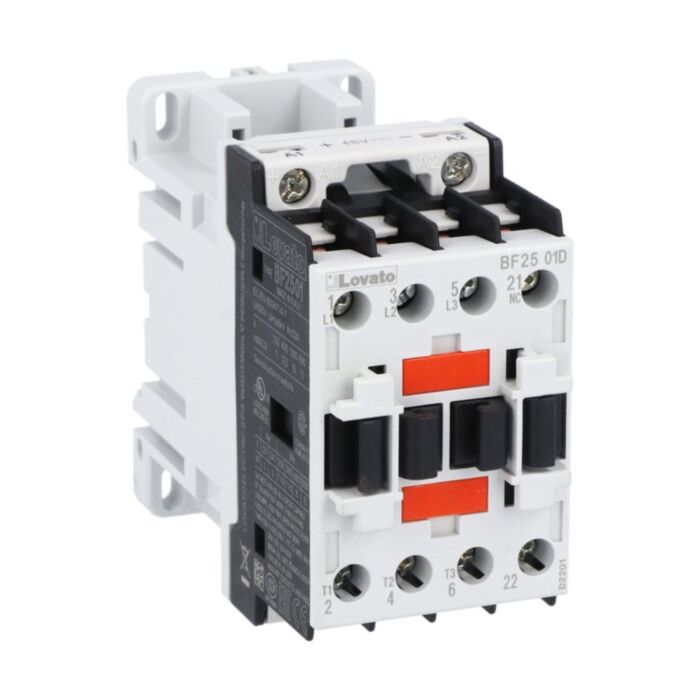

Lovato BF2501D048 is a robust three‑pole contactor designed for dependable motor switching. Rated AC-3 25A at 400 V (12.5 kW) with a 48 V DC coil, it features a built‑in 1NC auxiliary contact with mirror contact function for reliable signalling. Flexible screw or 35 mm DIN rail mounting simplifies panel integration, making this contactor a strong choice for industrial control and automation applications where consistent performance is essential.
Part of the BF25 range, this contactor carries Ui 690 V and Uimp 6 kV, with Ith 32 A and 15 HP at 480 V per UL/CSA. It delivers up to 20,000,000 mechanical cycles and operates from -50 to 70 °C, up to 3000 m altitude. Conformity includes IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents, ensuring proven safety and reliability in demanding environments.
Key Benefits
- AC-3 25A at 400 V for dependable motor starting
- 48 V DC coil for stable control circuit operation
- Built-in 1NC aux with mirror function enhances safety signalling
- Dual mounting: screw or 35 mm DIN rail for easy installation
- High Ui 690 V and Uimp 6 kV insulation strength
- Long mechanical life rated to 20,000,000 operations
- Wide operating temperature range from -50 to 70 °C
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 496 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2501D048 three-pole contactor
- Built-in 1NC auxiliary contact (mirror contact function)
- Screw and 35 mm DIN rail mounting terminals
- Basic installation and safety information
Applications
- AC-3 motor starters up to 12.5 kW at 400 V
- General-purpose three-phase motor switching and control
- Control panels with 48 V DC coil circuits
- Installations requiring screw or 35 mm DIN rail mounting
- Projects needing 1NC mirror auxiliary signalling
Frequently Asked Questions
What is the coil voltage and type?
The BF2501D048 has a 48 V DC coil for control circuits.
Does this contactor include an auxiliary contact?
Yes. It includes a built-in 1NC auxiliary with mirror contact function.
How can the unit be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What are the main current and power ratings?
AC-3 at 400 V is 25 A / 12.5 kW, and Ith (AC1) is 32 A.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Install and commission only by qualified personnel with power isolated. Adhere to specified torque, temperature limits and relevant standards to ensure safe operation.
| Manufacturer Part Number | BF2501D048 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975166413 |
| Coil Voltage | 48VDC |
