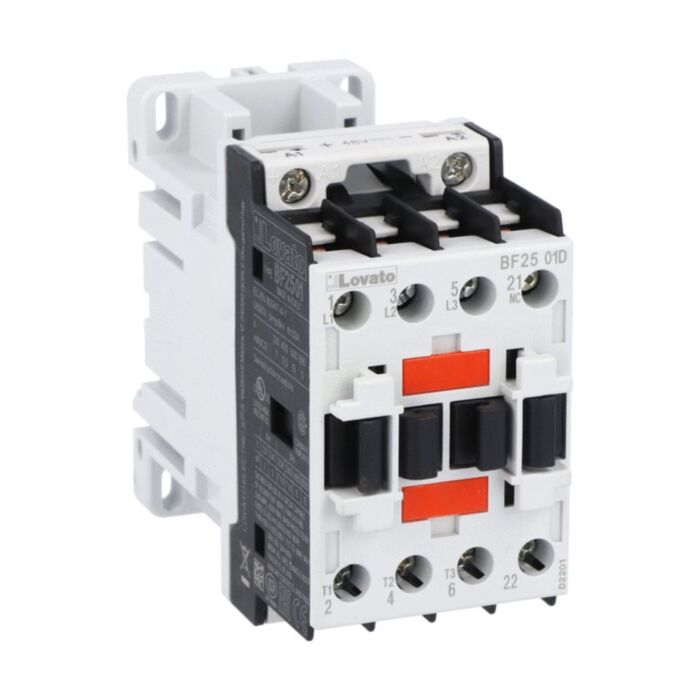

BF2501D024 Lovato contactor 3 pole AC3:25A 12.5kw 24vdc coil 1nc aux
MPN: BF2501D024
Special Price
£117.88
£98.23
Regular Price
£196.45
Why Choose the BF2501D024?
Lovato BF2501D024 is a three-pole contactor for reliable motor and load switching in industrial control panels. It features a 24 V DC coil and an AC-3 operating current of 25 A at 400 V (12.5 kW), with 32 A AC-1 capability. A built-in 1NC auxiliary with mirror contact function supports feedback, and the BF25 device mounts via screws or on a 35 mm DIN rail.
Engineered to IEC/EN/BS 60947 standards, the BF2501D024 offers a rated insulation voltage of 690 V and 6 kV impulse withstand. It delivers a mechanical life of 20,000,000 cycles and operates from −50 to 70 °C, up to 3000 m altitude. With 1.5 to 1.8 Nm terminal torque and 500 g weight, installation and handling are straightforward for panel builders.
Key Benefits
- Three-pole design handles 25 A AC-3 at 400 V for motors.
- DC coil at 24 V simplifies low-voltage control integration.
- 1NC auxiliary with mirror contact enables reliable feedback signalling.
- Dual mounting: screw fixing or 35 mm DIN rail.
- High insulation rating Ui 690 V and 6 kV impulse withstand.
- Wide operating temperature range from −50 to 70 °C.
- Long mechanical life rated at 20,000,000 cycles.
Technical Specification
- Product type designation: BF25
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF2501D024 three-pole contactor (BF25 series)
- Integrated 1NC auxiliary contact with mirror function
- 24 V DC operating coil
- Manufacturer documentation and packaging
Applications
- Motor control up to 12.5 kW at 400 V AC-3
- Resistive load switching up to 32 A AC-1
- Industrial control panels with 24 V DC control circuits
- Safety circuits requiring mirror contact feedback
- DIN rail or screw-mounted assemblies in machinery
Frequently Asked Questions
What coil voltage does the Lovato BF2501D024 use?
It has a DC coil rated at 24 V.
What is the AC-3 rating at 400 V?
It is rated 25 A / 12.5 kW for AC-3 duty at 400 V.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail installation.
Does it include auxiliary contacts?
Yes, it includes a built-in 1NC auxiliary with mirror contact function.
What standards does it comply with?
It conforms to IEC/EN/BS 60947-1 and -4-1, UL 60947-1 and -4-1, and CSA equivalents.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power before work, follow specified tightening torques, and comply with applicable IEC/EN/BS 60947 standards and the manufacturer’s instructions.
| Manufacturer Part Number | BF2501D024 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| KW Rating | 12.5kW |
| Number of Poles | 3 Pole |
| Coil Voltage | 24VDC |
| AC3 Amperage | 25A |
| AC1 Amperage | 32A |
| Auxillaries | 1NC |
| Barcode | 8013975166406 |
