BF2501D012 - 3P CONTACTOR 1NC 25A 12VDC

Why Choose the BF2501D012?

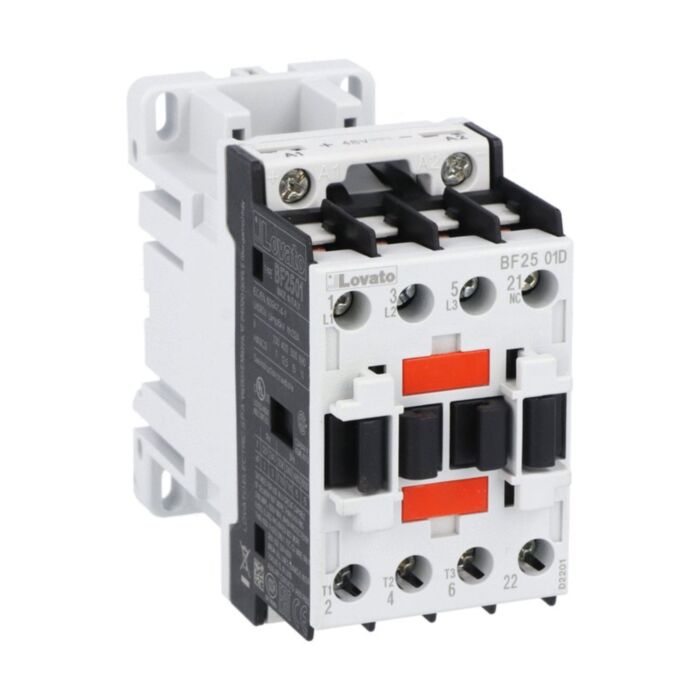

Designed for reliable motor control, the Lovato BF2501D012 is a three‑pole contactor rated 25A AC‑3 at 400V (12.5Kw) with a 12V DC coil. It includes a built‑in 1NC auxiliary contact with mirror contact function for dependable feedback. Flexible installation via screw or 35mm DIN rail mounting; conforms to IEC/EN/BS 60947‑1/‑4‑1 and UL/CSA 60947‑1/‑4‑1.

Engineered for harsh environments, the BF25 platform offers Ui 690 V, Uimp 6 kV and Ith 32 A, with mechanical life to 20,000,000 cycles. Operates from -50 to 70 °C and up to 3000 m altitude, Pollution Degree 3. Compact 490 g device with 1.5–1.8 Nm terminal torque for secure, repeatable connections.

Key Benefits

• Three-pole design for compact motor and load switching.
• 12V DC coil ensures reliable low-voltage control integration.
• Built-in 1NC auxiliary with mirror contact for safety feedback.
• AC1 32A and AC3 25A performance across demanding duties.
• High insulation ratings: Ui 690 V and Uimp 6 kV.
• Wide operating temperature -50 to 70 °C suits harsh environments.
• Long mechanical life: 20,000,000 cycles for reduced maintenance.
• Flexible screw or 35mm DIN rail mounting in panels.

Technical Specification

• Product type designation: BF25
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 32 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 490 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF2501D012 three-pole contactor with 12V DC coil
• Integrated 1NC auxiliary contact (mirror function)
• Installation instructions from manufacturer
• Original manufacturer packaging

Applications

• Motor starters up to 25A AC‑3 at 400V (12.5Kw).
• Resistive load switching up to 32A AC1.
• 12V DC control panels and automation circuits.
• Industrial machinery within UL/CSA 480V 15 HP ratings.
• Installations requiring screw or 35mm DIN rail mounting.

Safety note: Install and commission only by qualified personnel. Observe the stated ratings, tightening torques and standards, and ensure proper protection and isolation before working on the circuit.
