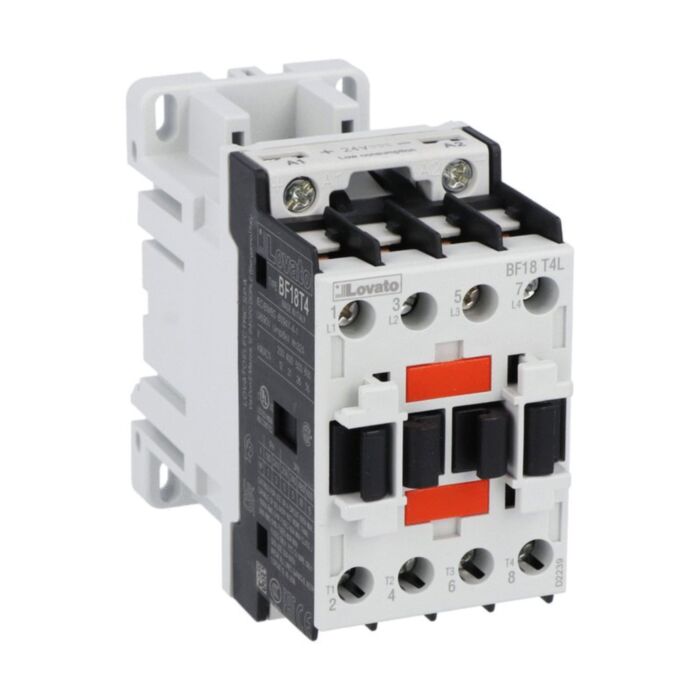

BF18T4L048 - 4P CONTACTOR NO 32A AC1 48VDC LOW C.

Why Choose the BF18T4L048?

Engineered by Lovato, the BF18T4L048 four-pole contactor brings dependable switching to control panels and machinery. With a 48 V DC low-consumption coil and IEC AC1 Ith of 32 A, it’s ready for general-duty loads. For motors, it delivers 18 A/7.5 kW at 400 V (AC3). Quick to install via 35 mm DIN rail or screw mounting, it streamlines panel building.

Built for demanding environments, this BF18 series contactor offers a 690 V rated insulation and 6 kV impulse withstand, plus a wide −50 to 70 °C operating range. It meets IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1 and CSA C22.2 standards, and supports up to 10 HP at 480 V. Robust specifications support reliable service up to 3000 m altitude and Pollution Degree 3.

Key Benefits

• Four-pole design suits power distribution and control applications.
• 48 V DC low-consumption coil reduces control power demand.
• 32 A AC1 rating handles robust general-purpose switching.
• 18 A/7.5 kW AC3 at 400 V for motor duties.
• DIN rail 35 mm or screw mounting enables fast installation.
• 690 V insulation and 6 kV impulse withstand enhance safety margins.
• Operates from −50 to 70 °C for harsh environments.
• Complies with IEC/EN/BS, UL and CSA standards.

Technical Specification

• Product type designation: BF18
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 32 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 500 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF18T4L048 four-pole contactor
• Manufacturer documentation and datasheet
• Protective packaging for transit

Applications

• General-purpose switching up to 32 A AC1 circuits
• Motor control to 18 A/7.5 kW at 400 V AC3
• UL/CSA motor loads up to 10 HP at 480 V
• Control panels using 48 V DC low-consumption coils
• DIN rail or screw-mounted industrial assemblies

Safety note: Install and commission only by qualified personnel. Always isolate power before wiring, and operate within the specified ratings, temperatures, and standards for safe, reliable performance.
