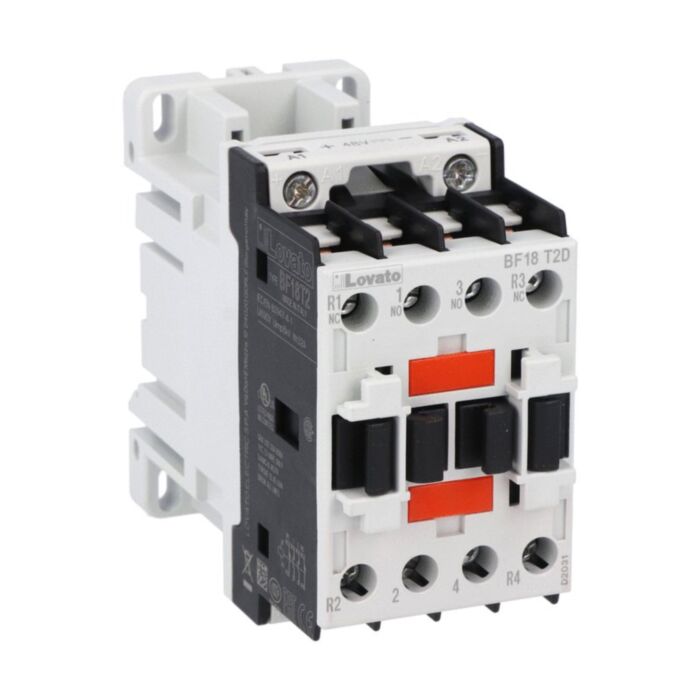

BF18T2D012 - 4P CONTACTOR 2NO+2NC 32A AC1 12VDC
MPN: BF18T2D012
Special Price
£113.57
£94.64
Regular Price
£189.29
Why Choose the BF18T2D012?
Meet the Lovato BF18T2D012 four-pole contactor designed for reliable motor and load switching. With a 12V DC coil and AC-1 Ith of 32A, it suits control panels requiring compact performance. Offering 2NO and 2NC contacts and 18A AC-3 at 400V (7.5 kW), it mounts by screws or on 35 mm DIN rail for fast, flexible installation.
Engineered for harsh environments, it carries Ui 690V and Uimp 6kV, operates from -50 to 70°C, and is rated Pollution Degree 3 up to 3000 m altitude. A 20,000,000-cycle mechanical life underpins reliability. Standards include IEC/EN/BS and UL/CSA 60947 series, with a 10 HP rating at 480V. Terminals tighten to 1.5–1.8 Nm.
Key Benefits
- Four-pole design with 2NO and 2NC contacts for versatile control.
- 12V DC coil ensures reliable operation in low-voltage control circuits.
- 32A Ith (AC1) and 18A AC3 at 400V capability.
- Quick screw or 35 mm DIN rail mounting for flexible installation.
- High endurance: 20,000,000 mechanical cycles for long service life.
- Wide operating temperature range from -50 to 70°C.
- Rated Ui 690V and impulse withstand Uimp 6 kV.
- Conforms to IEC/EN/BS, UL and CSA 60947 standards.
Technical Specification
- Product type designation: BF18
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 495 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF18T2D012 four-pole contactor
- Manufacturer datasheet (downloadable)
- Protective packaging
Applications
- Motor starters up to 7.5 kW at 400 V AC-3
- Resistive load switching up to 32 A AC-1
- HVAC, pumping and fan control panels
- General industrial automation and machine control
- Distribution boards requiring 12 V DC coil interfacing
Frequently Asked Questions
What coil voltage does the BF18T2D012 use?
It uses a 12 V DC coil.
Can this contactor be DIN rail mounted?
Yes, it supports screw mounting or 35 mm DIN rail.
What is the contact configuration?
It provides 2NO and 2NC contacts.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA equivalents.
What is the operating temperature range?
The operating temperature range is -50 to 70°C.
Safety note: Install and operate only within the stated ratings and standards. Verify the 12 V DC coil supply, tighten terminals to 1.5–1.8 Nm, and isolate power before wiring or maintenance. Qualified personnel only.
| Manufacturer Part Number | BF18T2D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167021 |
| Coil Voltage | 12VDC |
