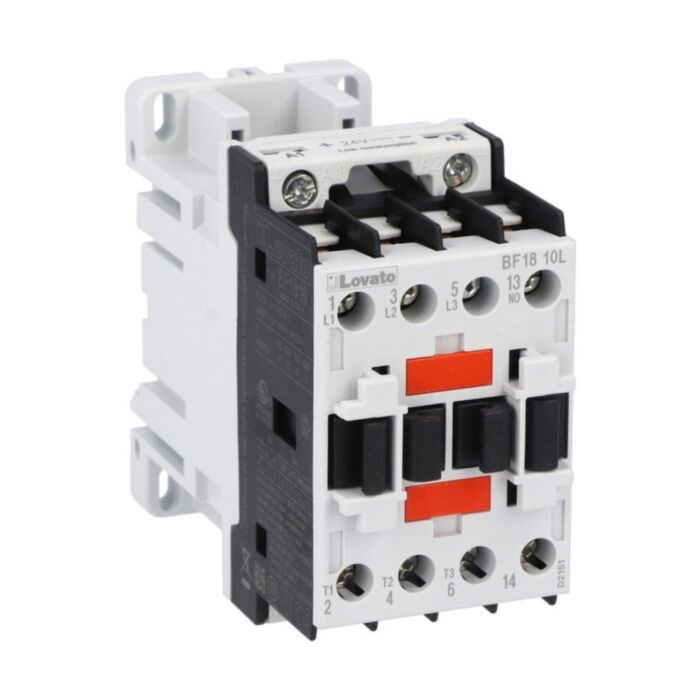

BF1810L024 - 3P CONTACTOR 1NO 18A AC3 24VDC LOW C.
MPN: BF1810L024
Special Price
£104.82
£87.35
Regular Price
£174.70
Why Choose the BF1810L024?
The Lovato BF1810L024 is a three-pole contactor engineered for dependable motor control and switching. With 18A AC-3 at 400V (7.5 kW), a low-consumption 24V DC coil and a built-in 1NO auxiliary contact, it streamlines control panel design. Flexible screw or 35mm DIN rail mounting supports fast installation and compact layouts. SKU BF1810L024 delivers proven performance for OEMs, panel builders and maintenance teams.
Designed for demanding environments, this contactor offers 690 V rated insulation (Ui), 6 kV impulse withstand (Uimp) and a long mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C, up to 3000 m altitude, Pollution Degree 3, and complies with IEC/EN/BS 60947-1/-4-1 as well as UL/CSA standards. Choose Lovato quality for robust, standards-based control in industrial automation and motor starter applications.
Key Benefits
- Low-consumption 24 V DC coil reduces control circuit power demand.
- AC-3 18 A, 7.5 kW at 400 V for reliable motor control.
- Flexible screw or 35 mm DIN rail mounting for fast installation.
- Integrated 1NO auxiliary contact simplifies wiring and signalling.
- Wide operating range from -50 to 70 °C for harsh environments.
- High dielectric strength: 690 V Ui and 6 kV impulse withstand.
- Long mechanical life rated at 20,000,000 operations.
- Conforms to IEC/EN/BS, UL and CSA standards for global compliance.
Technical Specification
- Product type designation: BF18
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1810L024 three-pole contactor
- Integrated 1NO auxiliary contact (built-in)
- Manufacturer documentation
Applications
- Motor starters up to 7.5 kW at 400 V (AC-3)
- General-purpose switching up to 32 A (AC-1)
- Control panels requiring low-consumption 24 V DC coils
- Industrial automation assemblies with screw or DIN rail mounting
- Pumps, fans and compressors in HVAC and process systems
Frequently Asked Questions
What coil voltage and type does this contactor use?
It uses a 24 V DC low-consumption coil for efficient control circuits.
What are the AC-3 ratings at 400 V?
It is rated 18 A / 7.5 kW for AC-3 duty at 400 V.
Does the unit include auxiliary contacts?
Yes, it has a built-in 1NO auxiliary contact.
How can the BF1810L024 be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What is the operating temperature range?
The operating range is -50 to 70 °C.
Safety note: Install and commission only by qualified personnel. Isolate all power before work and observe applicable standards; tighten terminals to 1.5–1.8 Nm.
| Manufacturer Part Number | BF1810L024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168455 |
| Coil Voltage | 24VDC |
