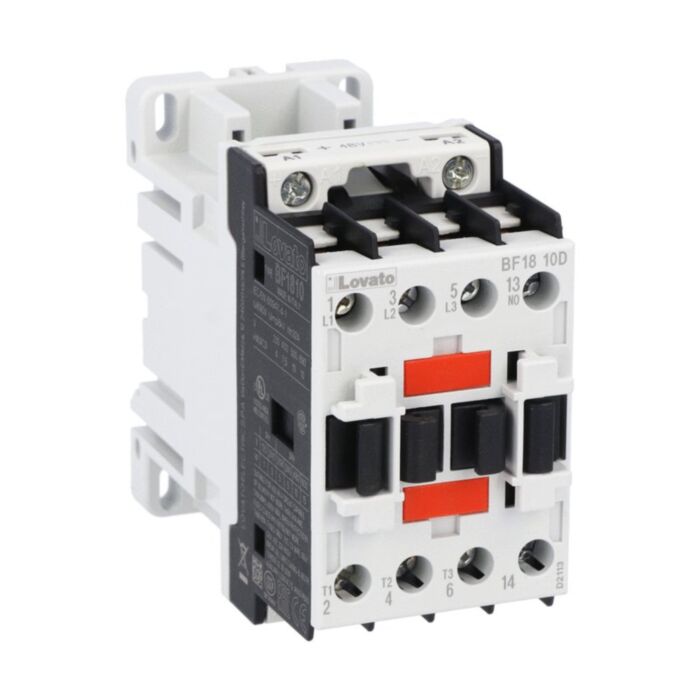

BF1810D012 - 3P CONTACTOR 1NO 18A 12VDC
MPN: BF1810D012
Special Price
£90.48
£75.40
Regular Price
£150.79
Why Choose the BF1810D012?
Deliver dependable motor switching with the Lovato BF1810D012 three-pole contactor (SKU: BF1810D012). With a 12 V DC coil and AC-3 rating of 18 A / 7.5 kW at 400 V, it includes a built-in 1NO auxiliary contact for signalling. Installation is straightforward via screw fixings or 35 mm DIN rail. Conforms to IEC/EN/BS 60947 standards for performance and safety.
Engineered for demanding environments, the BF18 platform offers a mechanical life of 20,000,000 cycles, Ui 690 V and Uimp 6 kV. It operates from -50 to 70 °C up to 3000 m altitude, pollution degree 3. Terminals tighten to 1.5 to 1.8 Nm for secure wiring. Also conforms to UL and CSA 60947 standards and weighs just 480 g.
Key Benefits
- AC-3 18 A/7.5 kW at 400 V for robust motor control.
- 12 V DC coil suits low-voltage control circuits.
- Built-in 1NO auxiliary contact simplifies signalling and interlocking.
- Screw or 35 mm DIN rail mounting speeds panel installation.
- Rated Ui 690 V and Uimp 6 kV for dielectric strength.
- Wide operating temperature -50 to 70 °C for harsh sites.
- Mechanical life of 20,000,000 cycles enhances service life.
Technical Specification
- Product type designation: BF18
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 480 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1810D012 three-pole contactor
- Factory-fitted 12 V DC coil
- Built-in 1NO auxiliary contact
- Manufacturer datasheet for installation and specifications
Applications
- Three-phase motor starters up to 7.5 kW at 400 V
- Pumps, fans and blowers switching and control
- Conveyors and material handling equipment
- HVAC compressors and air handling units
- General industrial automation panels and machinery
Frequently Asked Questions
What coil voltage does the Lovato BF1810D012 use?
It has a 12 V DC coil for the control circuit.
What is the AC-3 rating at 400 V?
The contactor is rated at 18 A / 7.5 kW in AC-3.
How is it mounted in a panel?
It supports screw mounting or 35 mm DIN rail installation.
Does it include auxiliary contacts?
Yes, it has a built-in 1NO auxiliary contact.
What temperature range can it operate in?
Operating temperature is -50 to 70 °C; storage is -60 to 80 °C.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before work and adhere to the stated ratings, torque values and applicable IEC/EN and UL/CSA standards.
| Manufacturer Part Number | BF1810D012 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975166321 |
| Coil Voltage | 12VDC |
