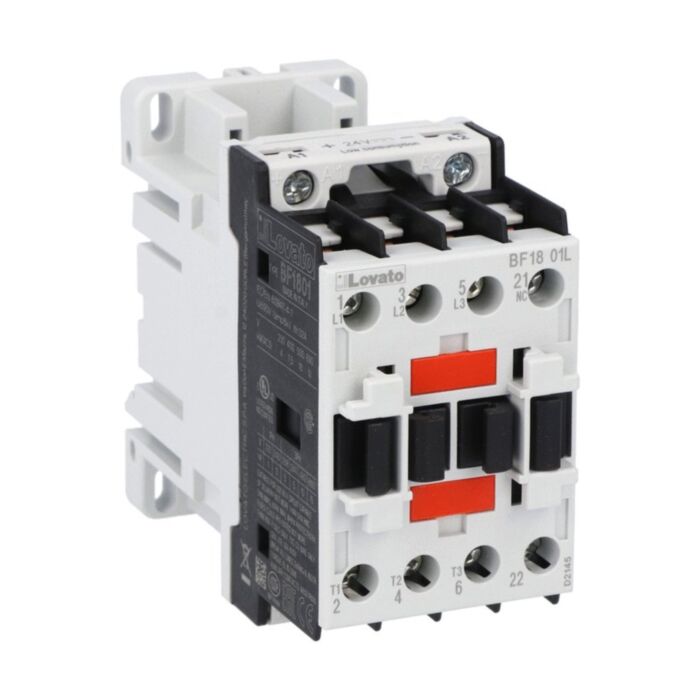

BF1801L024 - 3P CONTACTOR 1NC 18A AC3 24VDC LOW C.

Why Choose the BF1801L024?

Engineered for dependable motor control, the Lovato BF1801L024 three‑pole contactor delivers 18A AC‑3 at 400V (7.5 kW) with robust performance in industrial panels. This BF18 designation unit combines a low‑consumption 24 VDC coil with an integrated 1NC auxiliary mirror contact for reliable feedback and interlocking. SKU BF1801L024 supports screw or 35 mm DIN rail mounting for quick installation and panel flexibility.

Built for endurance and safety, the contactor offers 32 A Ith (AC‑1), 690 V rated insulation and 6 kV impulse withstand for robust isolation. It carries UL/CSA ratings including 10 HP at 480 V and a mechanical life of 20,000,000 cycles. Wide −50 to 70 °C operating range, up to 3000 m altitude, and Pollution Degree 3 suitability meet demanding UK industrial environments. Compliant with IEC/EN/BS 60947‑1 and 60947‑4‑1 standards.

Key Benefits

• 18A AC‑3 at 400V handles motors up to 7.5 kW.
• Low‑consumption 24 V DC coil minimises control power usage.
• Built‑in 1NC mirror contact enables safe status feedback.
• Rated insulation 690 V and 6 kV impulse withstand.
• Operates from −50 to 70 °C for harsh environments.
• Long mechanical life of 20,000,000 operations.
• Mounts via screws or 35 mm DIN rail for flexibility.
• UL/CSA rating: 10 HP at 480 V.

Technical Specification

• Product type designation: BF18
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 32 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 502 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF1801L024 three-pole contactor
• Built-in 1NC auxiliary contact (mirror contact function)
• Manufacturer literature (datasheet/installation information)
• Quality assurance documentation (certifications as applicable)

Applications

• Motor starters up to 7.5 kW at 400 V AC‑3.
• Pumps, fans and compressors requiring 24 VDC control circuits.
• HVAC air handling and chiller plant contactor duty.
• Conveyor and material handling drives at 18 A AC‑3.
• General industrial automation and panel building.

Safety note: Installation and commissioning must be performed by qualified personnel. Isolate power before work, follow IEC/EN 60947 requirements, and tighten terminals to 1.5–1.8 Nm.
