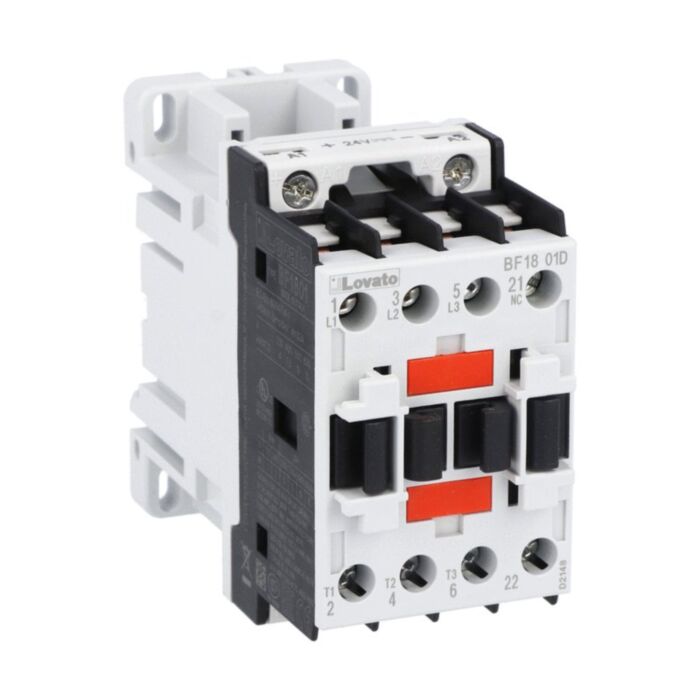

BF1801D024 Lovato contactor 3 pole AC3:18A 7.5kw 24vdc coil 1nc aux
MPN: BF1801D024
Special Price
£94.09
£78.41
Regular Price
£156.83
Why Choose the BF1801D024?
Lovato BF1801D024 is a three-pole contactor built for dependable motor and load control. Featuring a DC coil rated 24VDC and AC-3 performance of 18A / 7.5 kW at 400V, it suits a wide range of control panels. A built-in 1NC auxiliary with mirror contact function supports safety interlocks. Installation is straightforward with screw fixing or standard 35mm DIN rail mounting.
Part of the BF18 series, it provides Ui 690 V, Uimp 6 kV and Ith 32 A (AC1) under IEC/EN/BS 60947 standards. The device offers 20,000,000 mechanical cycles, operates from -50 to 70 °C up to 3000 m altitude, and suits pollution degree 3 environments. UL/CSA approvals include 10 HP at 480 V for broad panel compatibility.
Key Benefits
- AC-3 18A / 7.5 kW at 400V for reliable motor control
- 24VDC coil enables straightforward PLC and control panel integration
- Built-in 1NC auxiliary with mirror contact function enhances safety circuits
- Screw or 35mm DIN rail mounting simplifies panel installation
- Wide operating temperature -50 to 70 °C for harsh environments
- High mechanical life, 20,000,000 cycles, reduces downtime and maintenance
- Rated Ui 690 V and Uimp 6 kV ensure insulation robustness
- UL/CSA 10 HP at 480V supports North American installations
Technical Specification
- Product type designation: BF18
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 495 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1801D024 three-pole contactor
- Integrated 1NC auxiliary contact with mirror contact function
- 24 V DC coil fitted
- Manufacturer datasheet (downloadable)
Applications
- AC motor switching up to 18A AC-3 at 400V
- General-purpose loads up to 32A AC-1 in control panels
- OEM machinery, conveyors, pumps and fans
- Control panels requiring 24VDC coil operation
- Installations using screw or 35mm DIN rail mounting
Frequently Asked Questions
What is the coil voltage and type?
It has a DC coil rated at 24 VDC.
What are the main switching ratings?
AC-3 is 18A / 7.5 kW at 400V, and AC1 Ith is 32A.
Which auxiliary contacts are included?
One built-in 1NC auxiliary contact with mirror contact function.
How can the contactor be mounted?
It mounts by screw fixing or onto a 35mm DIN rail.
Which standards does it comply with?
IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA equivalents.
Safety note: Install and commission only by qualified personnel. Always isolate power before work, observe the stated ratings and environmental limits, and follow relevant IEC/UL/CSA standards and manufacturer instructions.
| Manufacturer Part Number | BF1801D024 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Coil Voltage | 24VDC |
| AC3 Amperage | 18A |
| AC1 Amperage | 32A |
| Auxillaries | 1NC |
| Barcode | 8013975166260 |
