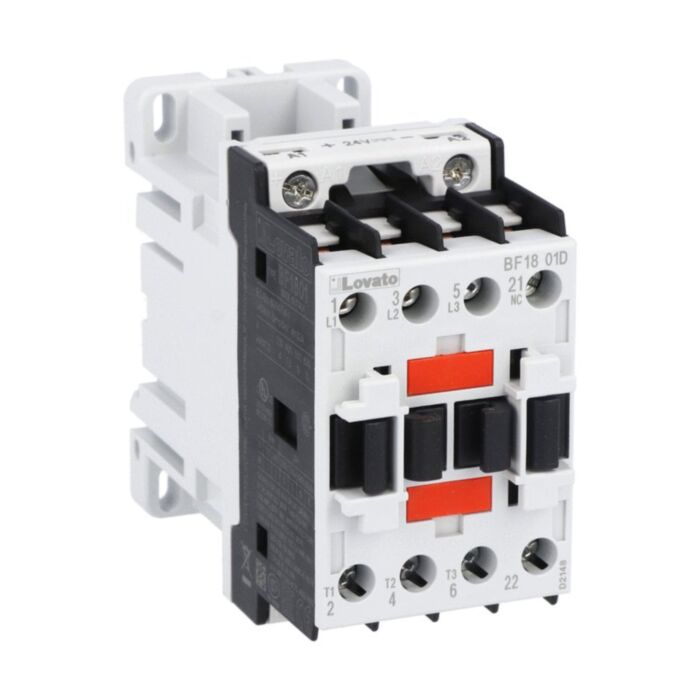

BF1801D012 - 3P CONTACTOR 1NC 18A 12VDC
MPN: BF1801D012
Special Price
£94.09
£78.41
Regular Price
£156.83
Why Choose the BF1801D012?
Lovato BF1801D012 is a robust three-pole contactor for motor and general switching duties, delivering 18 A AC-3 at 400 V with a 12 V DC coil. It includes a 1NC auxiliary contact with mirror contact function for reliable feedback. Rated Ui 690 V and Uimp 6 kV, this BF18 series device offers AC-1 Ith 32 A and convenient screw or 35 mm DIN rail mounting.
Engineered for durability, the contactor achieves 20,000,000 mechanical cycles and operates from -50 to 70 °C, with storage to -60 to 80 °C. It suits installations up to 3000 m, Pollution Degree 3, with terminal tightening torque 1.5–1.8 Nm. Conformity includes IEC/EN/BS 60947 and UL/CSA standards, plus a Sustainability certification.
Key Benefits
- 18 A AC-3 at 400 V for dependable motor switching
- 12 V DC coil simplifies low-voltage control integration
- Built-in 1NC auxiliary with mirror contact function
- Rated Ui 690 V and Uimp 6 kV for insulation robustness
- AC-1 Ith 32 A supports resistive load switching
- UL/CSA 10 HP rating at 480 V broadens compatibility
- Screw or 35 mm DIN rail mounting for flexible installation
- Wide -50 to 70 °C operating temperature range
Technical Specification
- Product type designation: BF18
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 32 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 494 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF18 three-pole contactor (SKU BF1801D012)
- Integrated 1NC auxiliary contact with mirror contact function
- Manufacturer datasheet (downloadable)
- Protective packaging
Applications
- AC-3 motor switching up to 18 A / 7.5 kW at 400 V
- General-purpose AC-1 resistive load switching up to 32 A
- Control panels requiring 12 VDC coil control
- Installations using 35 mm DIN rail or screw mounting
- Systems needing mirror-contact feedback via 1NC auxiliary
Frequently Asked Questions
What is the coil voltage of the BF1801D012?
The coil is 12 V DC.
Does this contactor include an auxiliary contact?
Yes, it has a built-in 1NC auxiliary with mirror contact function.
How can the contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 equivalents.
What is the operating temperature range?
It operates from -50 to 70 °C and can be stored from -60 to 80 °C.
Safety note: Install and commission only by qualified personnel. De-energise all circuits before work, observe the specified ratings, and tighten terminals to 1.5–1.8 Nm in accordance with applicable standards.
| Manufacturer Part Number | BF1801D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166253 |
| Coil Voltage | 12VDC |
