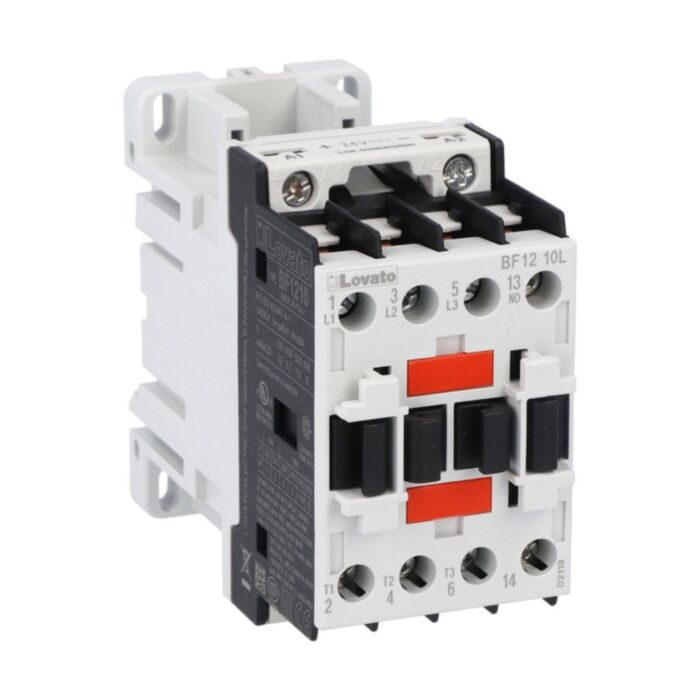

BF1210L048 - 3P CONTACTOR 1N0 12A AC3 48VDC LOW C.

Why Choose the BF1210L048?

Engineered for dependable motor and load switching, the Lovato BF1210L048 three‑pole contactor pairs a 48 V DC low‑consumption coil with robust AC‑3 performance. Rated 12 A / 5.7 kW at 400 V (AC‑3) and 28 A (AC‑1), it includes a built‑in 1NO auxiliary contact. Versatile screw or 35 mm DIN‑rail mounting streamlines panel integration and maintenance.

Designed for harsh environments, the BF12 series device offers 690 V Ui and 6 kV Uimp, a mechanical life of 20,000,000 cycles, and operation from -50 to 70 °C up to 3000 m altitude. Conforms to IEC/EN/BS, UL and CSA 60947 standards, with 1.5–1.8 Nm terminal torque and Pollution Degree 3 for reliable, long‑term service.

Key Benefits

• AC-3 motor rating: 12 A, 5.7 kW at 400 V.
• Low-consumption 48 V DC coil reduces control power demand.
• Dual mounting: screw fixing or 35 mm DIN rail.
• Extended temperature range from -50 to 70 °C.
• High dielectric strength: Ui 690 V, Uimp 6 kV.
• Long mechanical life rated at 20,000,000 cycles.
• Built-in 1NO auxiliary contact simplifies signalling and interlocks.
• Compliant with IEC, UL and CSA 60947 standards.

Technical Specification

• Product type designation: BF12
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 28 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 500 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF1210L048 three-pole contactor (48 V DC coil)
• Integrated 1NO auxiliary contact
• Downloadable manufacturer datasheet

Applications

• Motor starters up to 5.7 kW at 400 V (AC-3 12 A)
• General-purpose switching of resistive loads (AC-1 up to 28 A)
• Control panels using 48 V DC coil circuits
• DIN-rail or screw-mounted industrial automation assemblies

Safety note: Install and commission only by qualified personnel. Observe all ratings, torque terminals to 1.5–1.8 Nm, and isolate power before wiring or maintenance.
