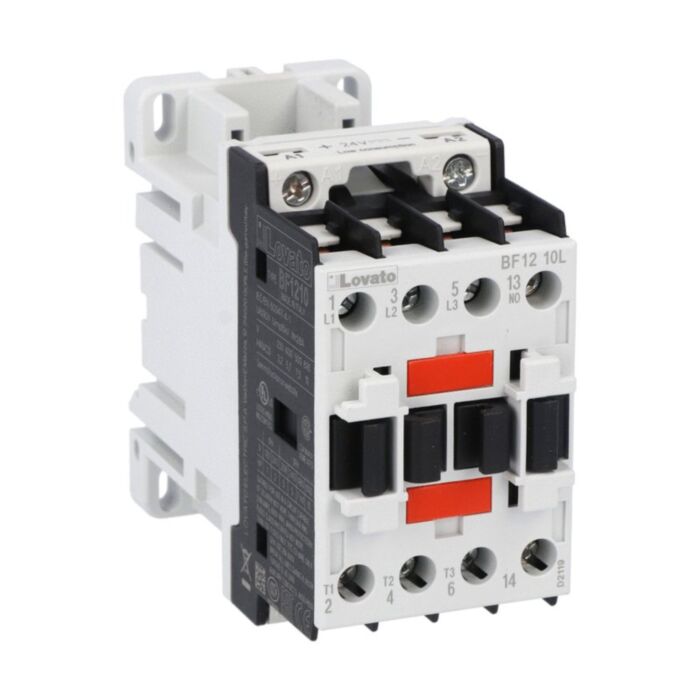

BF1210L024 - 3P CONTACTOR 1N0 12A AC3 24VDC LOW C.
MPN: BF1210L024
Special Price
£62.22
£51.85
Regular Price
£103.70
Why Choose the BF1210L024?
Engineered by Lovato, the BF1210L024 is a three-pole contactor for dependable motor and load switching. This SKU BF1210L024 features a low-consumption 24V DC coil, 12A AC-3 performance at 400V, and a built-in 1NO auxiliary contact. Flexible DIN rail 35mm or screw mounting simplifies panel layout while maintaining compliance with IEC/EN/BS 60947 standards.
Built for robust environments, this BF12 series contactor offers 28 A Ith (AC1), 690 V insulation (Ui) and 6 kV impulse withstand, with a mechanical life of 20,000,000 cycles. Rated for -50 to 70°C operation and up to 3000 m altitude, it supports 7.5 HP at 480 V (UL/CSA) and uses 1.5 to 1.8 Nm terminal torque for secure connections.
Key Benefits
- Low-consumption 24V DC coil reduces control power demand.
- Rated 12A AC-3 at 400V for reliable motor switching.
- 1NO auxiliary contact included for straightforward signalling.
- Dual mounting: screw or 35mm DIN rail for flexible installation.
- Wide operating temperature range from -50 to 70°C.
- High endurance: mechanical life up to 20,000,000 cycles.
- Robust insulation: Ui 690V and 6 kV impulse withstand.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 502 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1210L024 three-pole contactor
- Integrated 1NO auxiliary contact
- Installation and safety instructions
- Manufacturer datasheet
Applications
- Motor starters for pumps, fans and conveyors up to 12A AC-3 at 400V
- General-purpose switching in control panels and OEM machinery
- HVAC compressors and air handling units with 24V DC control
- Lighting and resistive loads within AC1/Ith limits
- PLC-controlled automation requiring low-consumption DC coil contactors
Frequently Asked Questions
What is the coil voltage and type?
It uses a 24 V DC low-consumption coil for efficient control power use.
How many poles and auxiliary contacts does it have?
It is a three-pole contactor with one built-in NO auxiliary contact.
What is its AC-3 motor switching rating?
At 400 V, the rating is 12 A (5.7Kw) for AC-3 duty.
How can it be mounted in a panel?
It supports screw mounting or 35 mm DIN rail installation.
What environmental and standards ratings apply?
Operating range is -50 to 70 °C; it conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Installation and maintenance must be carried out by qualified personnel with power isolated. Follow IEC/EN/BS 60947 practices, tighten terminals to 1.5 to 1.8 Nm, and stay within stated electrical and environmental ratings.
| Manufacturer Part Number | BF1210L024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168318 |
| Coil Voltage | 24VDC |
