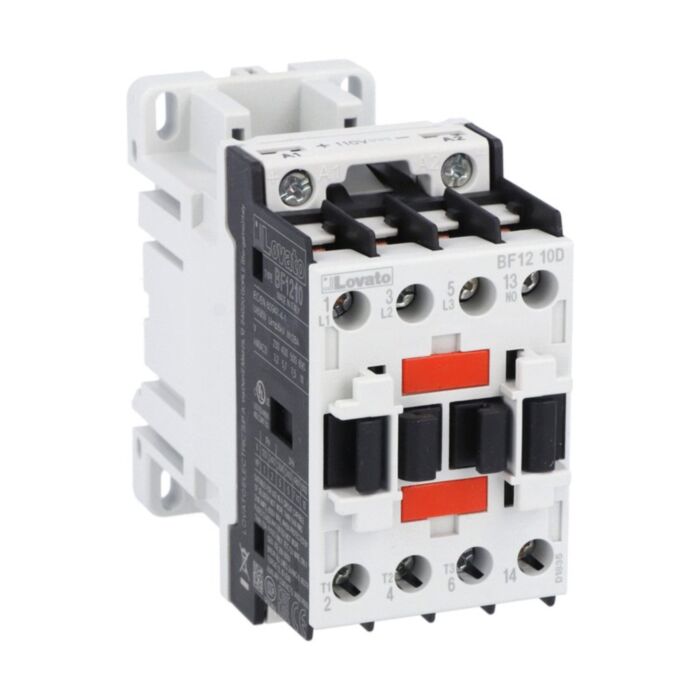

BF1210D024 Lovato contactor 3 pole AC3:12A 5.7kw 24vdc coil 1no aux
MPN: BF1210D024
Special Price
£68.60
£57.17
Regular Price
£114.34
Why Choose the BF1210D024?
Lovato’s BF1210D024 is a three‑pole contactor designed for dependable motor and load switching. With a 24V DC coil, AC‑3 rating of 12A at 400V and a built‑in 1NO auxiliary contact, it suits compact control panels. Quick installation is enabled by screw or 35mm DIN rail mounting, supporting fast, tidy builds.
Engineered for longevity, the BF12 series offers 20,000,000 mechanical cycles, 690V Ui and 6kV impulse withstand for robust isolation. Rated for -50 to 70 °C operation and up to 3000 m altitude, it meets IEC/EN/BS 60947 and UL/CSA standards. A 7.5 HP rating at 480V (UL/CSA) broadens motor control versatility.
Key Benefits
- AC-3 12A at 400V enables reliable motor and load switching.
- 24V DC coil provides clean, efficient control from standard DC supplies.
- Built-in 1NO auxiliary contact simplifies signalling and interlocks.
- Screw or 35mm DIN rail mounting speeds installation and panel layout.
- Wide operating temperature -50 to 70 °C for demanding sites.
- 20,000,000 mechanical cycles deliver long service life and reliability.
- IEC/EN/BS and UL/CSA approvals support UK and global compliance.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 487 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1210D024 three-pole contactor (BF12 series)
- Built-in 1NO auxiliary contact
- Integrated 24V DC coil
- Manufacturer installation and safety information
Applications
- Motor starters for small to medium loads (AC‑3 12A at 400V)
- Pumps, fans, compressors and conveyors control circuits
- Heating, ventilation and lighting control panels
- General industrial automation and OEM machinery
- Distribution boards requiring reliable contactor switching
Frequently Asked Questions
What is the AC‑3 rating at 400V?
It is rated 12A / 5.7Kw in AC‑3 at 400V per IEC.
What coil voltage does the BF1210D024 use?
It uses a 24V DC coil.
Does this contactor include an auxiliary contact?
Yes, it has a built-in 1NO auxiliary contact.
How can the contactor be mounted?
It supports screw fixing or 35mm DIN rail mounting.
What is the operating temperature range?
The specified operating range is -50 to 70 °C.
Safety note: Install and service only by qualified personnel. Always isolate power before work, tighten terminals to 1.5–1.8 Nm, and observe the specified temperature, altitude and standards requirements.
| Manufacturer Part Number | BF1210D024 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| KW Rating | 5.7kW |
| Number of Poles | 3 Pole |
| Coil Voltage | 24VDC |
| AC3 Amperage | 12A |
| AC1 Amperage | 28A |
| Auxillaries | 1NO |
| Barcode | 8013975166192 |
