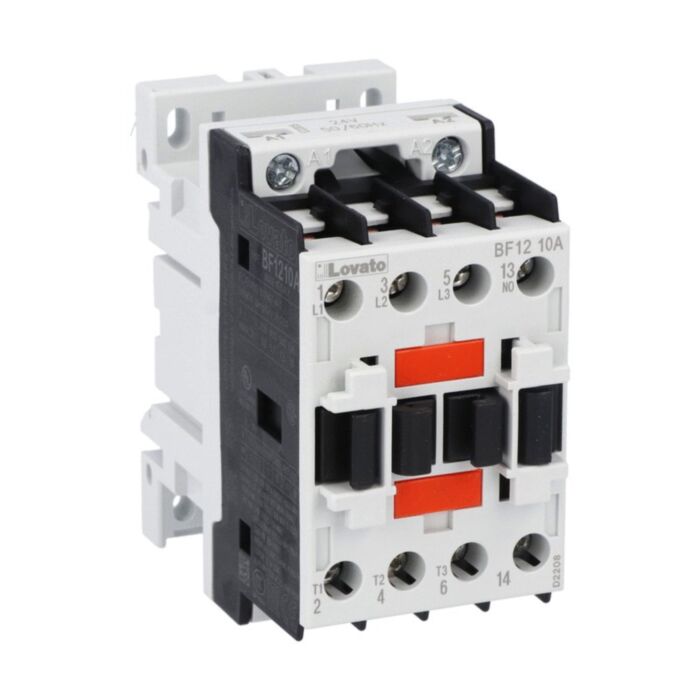

BF1210A57560 - 3P CONTACTOR 1NO 12A AC3 575/60
MPN: BF1210A57560
Special Price
£42.37
£35.31
Regular Price
£70.63
Why Choose the BF1210A57560?
Engineered for dependable motor control, the Lovato BF1210A57560 three‑pole contactor delivers 12A AC‑3 performance at 400V (5.7 kW) with a robust 575VAC 50/60Hz coil. A built‑in 1NO auxiliary contact streamlines signalling, while versatile screw or 35mm DIN rail mounting simplifies panel integration. Ideal for OEMs and MRO teams managing conveyors, pumps, fans and general AC load switching.
Built for demanding environments, it offers Ui 690V and Uimp 6kV insulation strength, 28A Ith (AC1), and a mechanical life of 20,000,000 operations. Operates from -50 to 70 °C, up to 3000 m altitude, pollution degree 3, with terminal torque 1.5–1.8 Nm. Conforms to IEC/EN/BS 60947 and UL/CSA standards for assured compliance in industrial control panels.
Key Benefits
- 12A AC-3 at 400V, 5.7 kW motor switching capability.
- Wide 575VAC 50/60Hz coil for stable control voltage.
- Built-in 1NO auxiliary contact simplifies signalling circuits.
- Screw or 35mm DIN rail mounting speeds installation.
- High insulation: Ui 690V, Uimp 6kV for robust performance.
- Long mechanical life rated to 20,000,000 operations.
- Operates from -50 to 70 °C; suitable for harsh environments.
- UL/CSA 7.5 HP at 480V supports North American panels.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 340 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1210A57560 contactor (3-pole, 575VAC coil)
- Integrated 1NO auxiliary contact
- Manufacturer datasheet (digital)
- Protective packaging
Applications
- Motor starters up to 12A AC-3 at 400V
- Pumps, fans and compressors control circuits
- Conveyors and material handling equipment
- General-purpose AC switching for resistive loads (AC1)
- Industrial control panels using DIN rail or screw mounting
Frequently Asked Questions
What is the coil voltage and frequency?
The coil is rated 575VAC at 50/60Hz.
Does this contactor include an auxiliary contact?
Yes. It has a built-in 1NO auxiliary contact.
How can it be mounted in a panel?
It supports screw fixing or 35mm DIN rail mounting.
What operating temperatures are supported?
The operating range is -50 to 70 °C.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1 and CSA C22.2 n° 60947-1/-4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power before work, tighten terminals to 1.5–1.8 Nm, and observe all stated electrical, temperature and altitude limits.
| Manufacturer Part Number | BF1210A57560 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975160367 |
| Coil Voltage | 575V |
