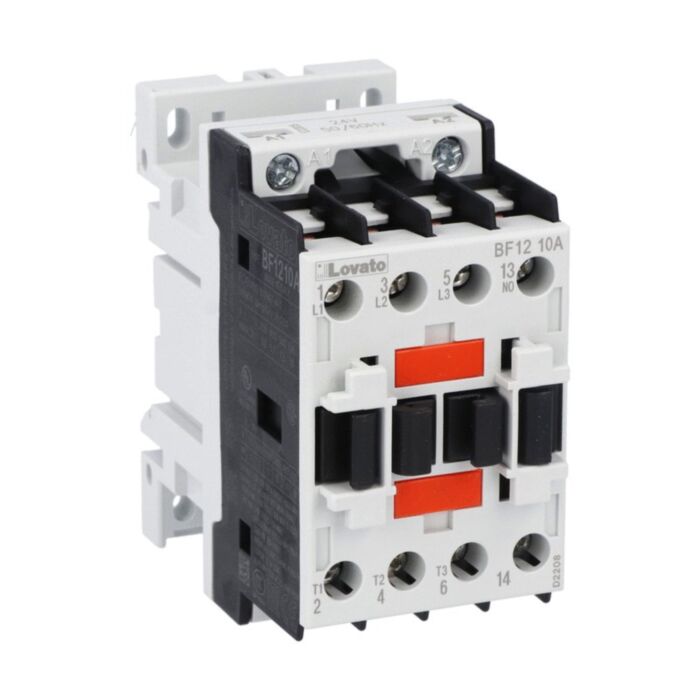

BF1210A230 Lovato contactor 3 pole AC3:12A 5.7kw 230vac coil 1no aux
MPN: BF1210A230
Special Price
£42.37
£35.31
Regular Price
£70.63
Why Choose the BF1210A230?
The Lovato BF1210A230 three‑pole contactor delivers dependable switching for motors and loads in compact control panels. Featuring a 230VAC 50/60Hz AC coil and a built‑in 1NO auxiliary contact, SKU BF1210A230 combines straightforward wiring with versatile screw or 35mm DIN rail mounting. Rated AC‑3 12A at 400V (5.7Kw) and AC‑1 28A, it provides robust performance for everyday industrial automation tasks.
Engineered for demanding environments, this BF12 series contactor offers Ui 690 V and Uimp 6 kV, with a mechanical life rated at 20,000,000 cycles. It operates from -50 to 70 °C up to 3000 m altitude, pollution degree 3. Conforms to IEC/EN/BS 60947 and UL/CSA standards, with 7.5 HP at 480V per UL/CSA, ensuring reliable, compliant control across diverse applications.
Key Benefits
- 12A AC‑3 at 400V (5.7Kw) for reliable motor switching.
- 28A AC‑1 rating supports higher resistive load currents.
- 230VAC 50/60Hz coil suits UK and European control supplies.
- Built‑in 1NO auxiliary contact simplifies signalling and interlocking.
- Screw or 35mm DIN rail mounting speeds installation.
- High insulation: Ui 690 V and Uimp 6 kV.
- Long mechanical life, tested to 20,000,000 operations.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 356 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1210A230 three-pole contactor
- Integrated 1NO auxiliary contact
- Installation and safety information
- Manufacturer datasheet (downloadable)
Applications
- Motor starters and reversing controls within 12A AC-3 at 400V
- General machinery control panels and automation assemblies
- Resistive load switching up to 28A AC-1
- HVAC fans, pumps and compressors within stated ratings
Frequently Asked Questions
What is the coil voltage and frequency?
It has a 230VAC AC coil rated for 50/60Hz operation.
What is the AC-3 rating at 400V?
It is rated 12A at 400V (5.7Kw) in AC-3 duty.
Does this contactor include auxiliary contacts?
Yes, it has a built-in 1NO auxiliary contact.
How can the BF1210A230 be mounted?
It supports screw mounting or 35mm DIN rail mounting.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA equivalents.
Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate power before work, follow applicable standards, and use appropriate protective equipment.
| Manufacturer Part Number | BF1210A230 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | Lovato |
| KW Rating | 5.7kW |
| Number of Poles | 3 Pole |
| Coil Voltage | 230VAC |
| AC3 Amperage | 12A |
| AC1 Amperage | 28A |
| Auxillaries | 1NO |
| Barcode | 8013975160282 |
