BF1210A22060 - 3P CONTACTOR 1NO 12A AC3 220/60
MPN: BF1210A22060
Special Price
£42.37
£35.31
Regular Price
£70.63
Why Choose the BF1210A22060?

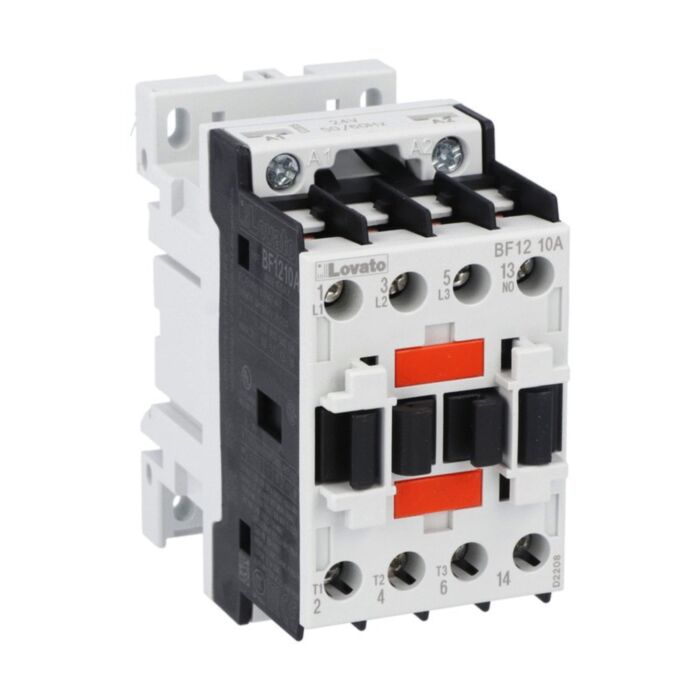

The Lovato BF1210A22060 is a three-pole contactor for dependable motor and load control. Delivering AC-3 current of 12 A (5.7 kW) at 400 V, with a 220 V AC 60 Hz coil, it provides consistent switching and low power loss. A built-in 1NO auxiliary contact supports signalling, while versatile screw or 35 mm DIN rail mounting simplifies installation in new builds and upgrades.
Designed for resilience, the BF12 series offers Ui 690 V and Uimp 6 kV, with Ith 28 A for robust utilisation. A mechanical life of 20,000,000 cycles and an operating range from -50 to 70 °C suit harsh environments up to 3000 m altitude, pollution degree 3. Fully compliant with IEC/EN/BS and UL/CSA standards, it integrates reliably into global control panels.
Key Benefits
- AC-3 12 A (5.7 kW) at 400 V for dependable motor starting.
- 220 V AC 60 Hz coil ensures stable operation and fast pull-in.
- Integrated 1NO auxiliary contact for straightforward status signalling.
- Screw or 35 mm DIN rail mounting for quick panel installation.
- High insulation: Ui 690 V and Uimp 6 kV robustness.
- Wide -50 to 70 °C operating range suits demanding environments.
- Long mechanical life rated to 20,000,000 cycles for durability.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 348 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1210A22060 three-pole contactor
- Integrated 1NO auxiliary contact
- Factory-fitted 220 V AC 60 Hz coil
Applications
- Motor starters and controls up to AC-3 12 A at 400 V
- Pumps, fans and HVAC control panels
- Conveyors and material handling equipment
- General-purpose switching in industrial automation
- Auxiliary control and signalling circuits
Frequently Asked Questions
What coil voltage and frequency does the BF1210A22060 use?
It has a 220 V AC 60 Hz coil.
What is the AC-3 rating at 400 V for this contactor?
It is rated at 12 A, equivalent to 5.7 kW at 400 V.
How can this contactor be mounted in a panel?
It supports screw fixing or 35 mm DIN rail mounting.
Which auxiliary contacts are built in?
It includes one normally open (1NO) auxiliary contact.
Which standards does it conform to?
It conforms to IEC/EN/BS 60947-1/-4-1 and UL/CSA equivalents.
Safety note: Install and commission only by qualified personnel. Isolate power before work, tighten terminals to 1.5–1.8 Nm, and operate within the specified environmental ratings and standards.
| Manufacturer Part Number | BF1210A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975160336 |
| Coil Voltage | 220V |
