BF1210A048 - 3P CONTACTOR 1NO 12A AC3 48/50-60
MPN: BF1210A048
Special Price
£42.37
£35.31
Regular Price
£70.63
Why Choose the BF1210A048?

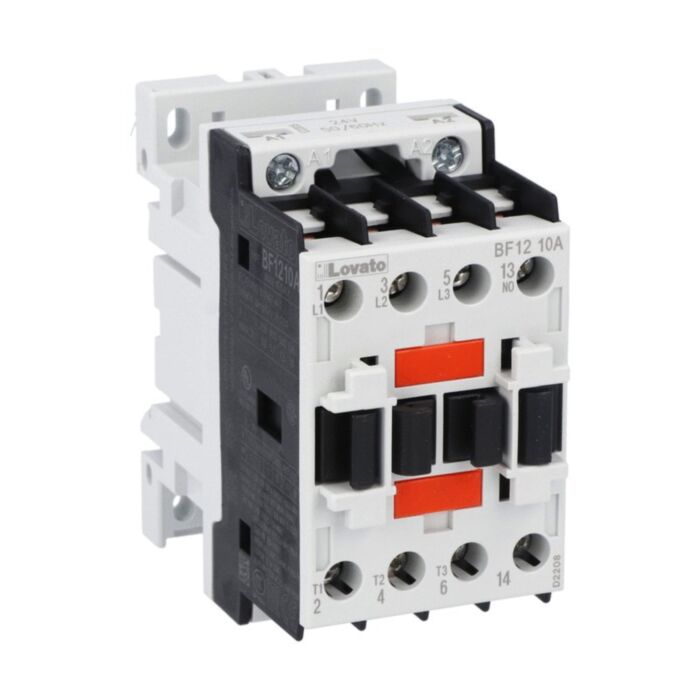

The Lovato BF1210A048 is a compact three-pole contactor designed for dependable motor and load switching. With a 48 VAC 50/60 Hz coil and AC‑3 rating of 12 A at 400 V (5.7 kW), it suits a wide range of control panels. A built‑in 1NO auxiliary contact simplifies signalling, and screw or 35 mm DIN rail mounting speeds installation.
Engineered for demanding environments, the BF1210A048 offers 690 V insulation and 6 kV impulse withstand, with 28 A Ith (AC‑1) and a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C up to 3000 m altitude, pollution degree 3. Conforms to IEC/EN/BS 60947-1/-4-1, UL and CSA standards for assured performance and safety.
Key Benefits
- 12 A AC‑3 at 400 V supports motors up to 5.7 kW.
- Wide 48 VAC 50/60 Hz coil for common control supplies.
- Integrated 1NO auxiliary contact simplifies status signalling.
- Versatile screw or 35 mm DIN rail mounting options.
- High 690 V insulation and 6 kV impulse withstand.
- Long mechanical life: 20,000,000 operations for reliability.
- Operates -50 to 70 °C; suitable for harsh environments.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 364 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1210A048 three-pole contactor
- Built-in 1NO auxiliary contact
- 48 VAC 50/60 Hz coil installed
- Manufacturer documentation
Applications
- Three-phase motor starters and contactor assemblies
- Pumps, fans, and HVAC control panels
- Conveyors, compressors, and light industrial machinery
- General-purpose load switching (AC‑1) up to 28 A
- OEM control cabinets and panel builds
Frequently Asked Questions
What is the coil voltage and frequency?
The coil is rated 48 VAC at 50/60 Hz.
What are the main AC-3 ratings at 400 V?
It is rated 12 A AC‑3 at 400 V, equivalent to 5.7 kW.
How can this contactor be mounted?
It supports screw mounting or 35 mm DIN rail mounting.
Does it include auxiliary contacts?
Yes, it has a built‑in 1NO auxiliary contact.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1/-4-1, UL 60947-1/-4-1, and CSA C22.2 equivalents.
Safety note: Install and commission only by qualified personnel. Isolate all power supplies before wiring, observe specified torque values, and operate within the stated environmental limits and standards.
| Manufacturer Part Number | BF1210A048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975160268 |
| Coil Voltage | 48V |
