BF1201L048 - 3P CONTACTOR 1NC 12A AC3 48VDC LOW C.

Why Choose the BF1201L048?

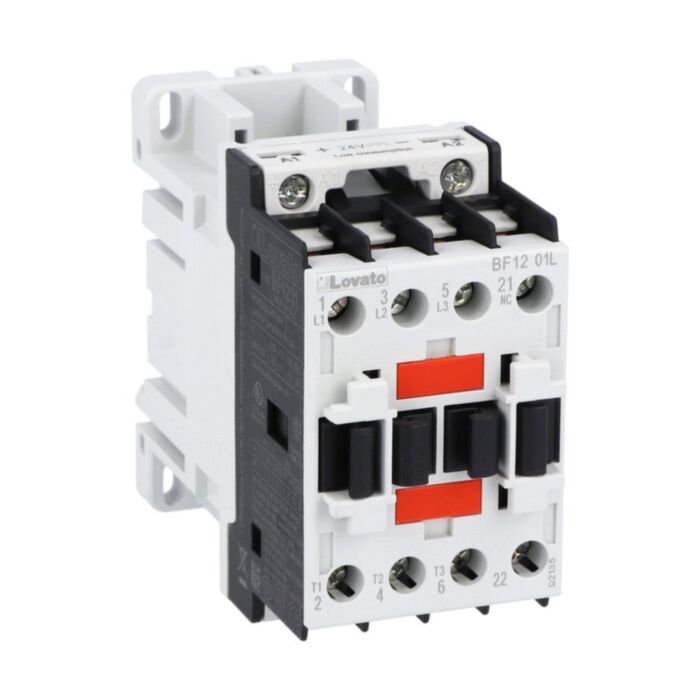

Lovato BF1201L048 is a robust three‑pole contactor designed for reliable motor switching under AC-3 duty. With a 12A AC3 rating at 400V and a low-consumption 48V DC coil, it reduces control power demand. A built‑in 1NC auxiliary with mirror contact function enhances safety signalling. Flexible screw or 35mm DIN rail mounting streamlines panel integration.

Engineered for demanding environments, BF12-series construction delivers 690 V Ui insulation and 6 kV impulse withstand, with 28 A Ith (AC1) capability. It operates from -50 to 70 °C, up to 3000 m altitude, pollution degree 3, and offers 20,000,000 mechanical cycles. Certified to IEC/EN/BS 60947 and UL/CSA standards, it supports 7.5 HP at 480 V and weighs 500 g.

Key Benefits

• 12A AC3 performance at 400V for dependable three-phase motor switching.
• Low-consumption 48V DC coil minimises control circuit energy demand.
• Integrated 1NC auxiliary with mirror contact function for reliable status feedback.
• Flexible screw or 35mm DIN rail mounting simplifies panel assembly.
• Wide -50 to 70 °C operating range suits harsh environments.
• High endurance with 20,000,000 mechanical life cycles reduces maintenance.
• Rated insulation 690 V and 6 kV impulse withstand enhance dielectric strength.

Technical Specification

• Product type designation: BF12
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 28 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 500 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF1201L048 three-pole contactor
• Integrated 1NC auxiliary contact with mirror contact function
• Manufacturer documentation
• Protective packaging

Applications

• AC-3 motor switching up to 12A at 400V
• Control panels using 48V DC control circuits
• Installations requiring mirror contact auxiliary feedback
• Screw or 35mm DIN rail mounted assemblies
• Environments meeting pollution degree 3 requirements

Safety note: Installation and commissioning must be performed by qualified personnel. Isolate power before work, comply with IEC/EN/BS 60947 and local regulations, and operate within the stated ratings and environmental limits.
