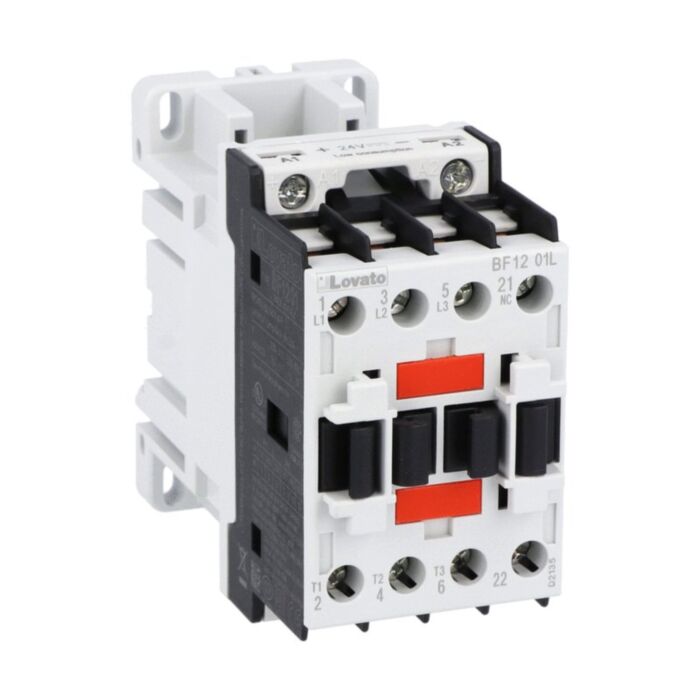

BF1201L024 - 3P CONTACTOR 1NC 12A AC3 24VDC LOW C.
MPN: BF1201L024
Special Price
£62.22
£51.85
Regular Price
£103.70
Why Choose the BF1201L024?
Designed for reliable motor control, the Lovato BF1201L024 three-pole contactor delivers IEC AC-3 performance of 12 A (5.7 kW at 400 V) and AC-1 Ith of 28 A. Featuring a 24 V DC low-consumption coil and a built-in 1NC auxiliary with mirror contact function, SKU BF1201L024 suits panel builders and OEMs. Quick screw or 35 mm DIN rail mounting streamlines installation.
Robustly rated at Ui 690 V and Uimp 6 kV, this BF12 series contactor offers a 20,000,000-cycle mechanical life for long service. It operates from -50 to 70 °C, up to 3000 m altitude, with 1.5 to 1.8 Nm terminal torque. Conforming to IEC/EN/BS, UL and CSA standards and noted for sustainability, it fits demanding industrial control applications.
Key Benefits
- Reliable 12 A AC-3 switching at 400 V, up to 5.7 kW.
- Low-consumption 24 V DC coil reduces control power demand.
- Integrated 1NC auxiliary with mirror contact enhances safety circuits.
- Wide operating temperature -50 to 70 °C for harsh environments.
- Quick DIN rail or screw mounting for flexible panel layouts.
- High mechanical life of 20,000,000 cycles for durability.
- Complies with IEC/EN/BS, UL and CSA for assured conformity.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1201L024 three-pole contactor
- Integrated 1NC auxiliary contact (mirror contact function)
- Manufacturer datasheet (PDF) available via product page
Applications
- Motor starters up to 5.7 kW at 400 V (AC-3)
- Pumps, fans and conveyors in industrial control panels
- HVAC and building services switching circuits
- Resistive load switching in AC-1 applications
- OEM machinery and automation assemblies
Frequently Asked Questions
What coil voltage does the Lovato BF1201L024 use?
It has a 24 V DC low-consumption coil for efficient control.
What is the AC-3 rating at 400 V?
12 A, equivalent to 5.7 kW at 400 V per IEC AC-3.
Which auxiliary contacts are provided?
One built-in 1NC auxiliary with mirror contact function is included.
How is the contactor mounted?
It supports screw mounting or 35 mm DIN-rail mounting.
What environmental and compliance ratings apply?
Ui 690 V, Uimp 6 kV, -50 to 70 °C; conforms to IEC/EN/BS, UL and CSA.
Safety note: Install and service only by qualified personnel. Isolate power before work and operate within the stated ratings, temperatures and torque to maintain compliance with the listed standards.
| Manufacturer Part Number | BF1201L024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975168240 |
| Coil Voltage | 24VDC |
