BF1201A22060 - 3P CONTACTOR 1NC 12A AC3 230/50-60
MPN: BF1201A22060
Special Price
£42.37
£35.31
Regular Price
£70.63
Why Choose the BF1201A22060?

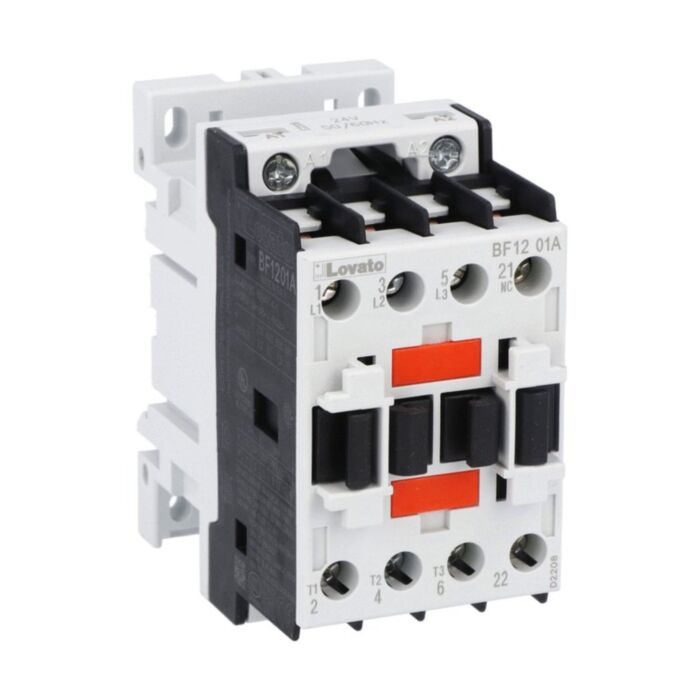

The Lovato BF1201A22060 is a robust three-pole contactor for dependable motor and load switching. Delivering AC3 performance of 12A/5.7 kW at 400V with a 220V 60Hz AC coil, the BF1201A22060 integrates a built-in 1NC auxiliary contact with mirror contact function. Flexible installation is supported via screw fixing or 35mm DIN rail, making it a practical choice for compact control panels and machine builders seeking consistent, standards-aligned operation.
Engineered for durability, it offers Ui 690V, Uimp 6kV and Ith 28A, with a mechanical life of 20,000,000 cycles. Rated for -50 to 70°C operation and up to 3000 m altitude (pollution degree 3), terminals tighten to 1.5-1.8 Nm for secure connections. Certified to IEC/EN/BS 60947-1 and 60947-4-1, UL and CSA equivalents, it also carries 7.5 HP at 480V (UL/CSA).
Key Benefits
- AC3 12A/5.7kW at 400V for reliable motor switching.
- 220V 60Hz AC coil for straightforward control integration.
- Built-in 1NC auxiliary with mirror contact function.
- Dual mounting: screw fix or 35mm DIN rail.
- High endurance with 20,000,000 mechanical operations.
- Robust insulation: Ui 690V and Uimp 6kV ratings.
- Wide operating temperature range from -50 to 70°C.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 350 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1201A22060 three-pole contactor
- Integrated 1NC auxiliary contact (mirror contact function)
- Manufacturer documentation (where supplied)
Applications
- Motor starters and contactor assemblies up to 12A AC3 at 400V
- Pump, fan and compressor control circuits
- General-purpose switching in industrial machine panels
- HVAC and building services control systems
- Conveyor and material handling equipment
Frequently Asked Questions
What is the coil voltage and frequency?
The coil is 220V AC at 60Hz.
What is the AC3 switching capacity?
It is rated 12A/5.7kW at 400V in AC3 duty.
Does it include auxiliary contacts?
Yes, it has a built-in 1NC auxiliary with mirror contact function.
How can this contactor be mounted?
It supports screw mounting or 35mm DIN rail installation.
Which standards does it comply with?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA C22.2 n° 60947-1/-4-1.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before work and use the product within the stated ratings and environmental limits.
| Manufacturer Part Number | BF1201A22060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975160459 |
| Coil Voltage | 230V |
