BF1201A048 - 3P CONTACTOR 1NC 12A AC3 48/50-60
MPN: BF1201A048
Special Price
£42.37
£35.31
Regular Price
£70.63
Why Choose the BF1201A048?

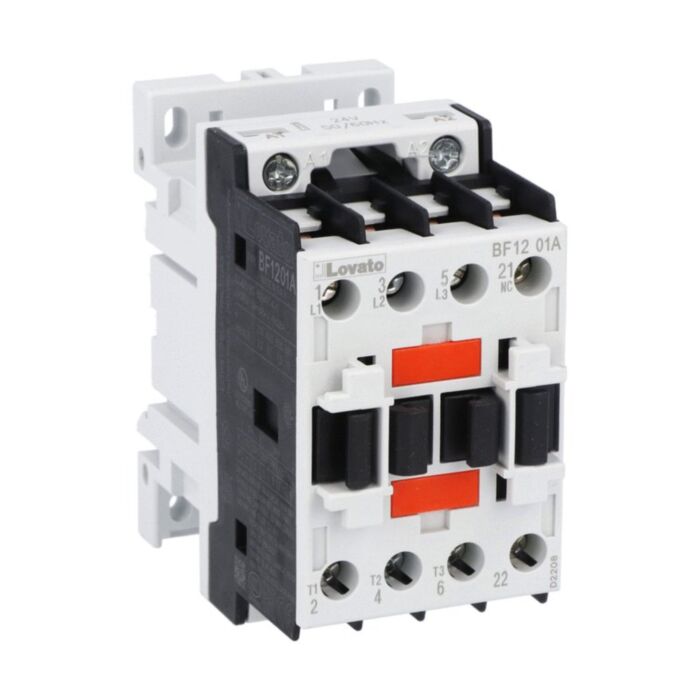

Lovato’s BF1201A048 three-pole contactor delivers dependable motor and load control in a compact form factor. With a 48VAC 50/60Hz coil and AC-3 rating of 12A (5.7Kw) at 400V, it covers a broad range of switching duties. A built-in 1NC auxiliary with mirror contact function provides reliable status feedback. Ui is 690 V with 6 kV Uimp, and mounting is via screws or 35mm DIN rail.
Engineered on the BF12 platform, it offers 28 A Ith (AC1) and a mechanical life of 20,000,000 cycles. Operating from -50 to 70 °C and up to 3000 m altitude, it supports terminal torques of 1.5 to 1.8 Nm. UL/CSA 7.5 HP at 480V and conformity to IEC/EN/BS 60947 and UL/CSA standards help ensure compliance across diverse control panels.
Key Benefits
- 48VAC 50/60Hz coil compatible with common control supplies.
- 12A AC-3 (5.7Kw) at 400V for reliable motor switching.
- 1NC auxiliary with mirror contact function for safe feedback.
- Rated Ui 690 V and Uimp 6 kV for insulation robustness.
- Screw or 35mm DIN rail mounting for fast installation.
- Wide -50 to 70 °C operating range suits harsh environments.
- High mechanical life, 20,000,000 cycles, minimising maintenance.
Technical Specification
- Product type designation: BF12
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 28 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 364 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF1201A048 three-pole contactor
- Integrated 1NC auxiliary contact (mirror function)
- Manufacturer datasheet (downloadable)
Applications
- Motor switching up to 12A AC-3 at 400V
- Control panels using 48VAC 50/60Hz coils
- Installations requiring 1NC mirror contact feedback
- Screw or 35mm DIN rail mounted assemblies
- Environments from -50 to 70 °C and up to 3000 m
Frequently Asked Questions
What coil voltage and frequency does the BF1201A048 use?
It has an AC coil rated 48VAC at 50/60Hz.
What are the main current ratings for this contactor?
It is rated AC-3 12A (5.7Kw) at 400V and Ith (AC1) 28A.
Does it include an auxiliary contact?
Yes, it includes a 1NC auxiliary with a mirror contact function.
How can the contactor be mounted?
It supports screw mounting or 35mm DIN rail installation.
Which standards does the BF1201A048 conform to?
It conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and CSA C22.2 n° 60947-1 and 60947-4-1.
Safety note: Install and service only by qualified personnel. Isolate power before work, tighten terminals to 1.5–1.8 Nm, and observe the stated ratings and applicable IEC/EN/BS and UL/CSA standards.
| Manufacturer Part Number | BF1201A048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975160381 |
| Coil Voltage | 48V |
