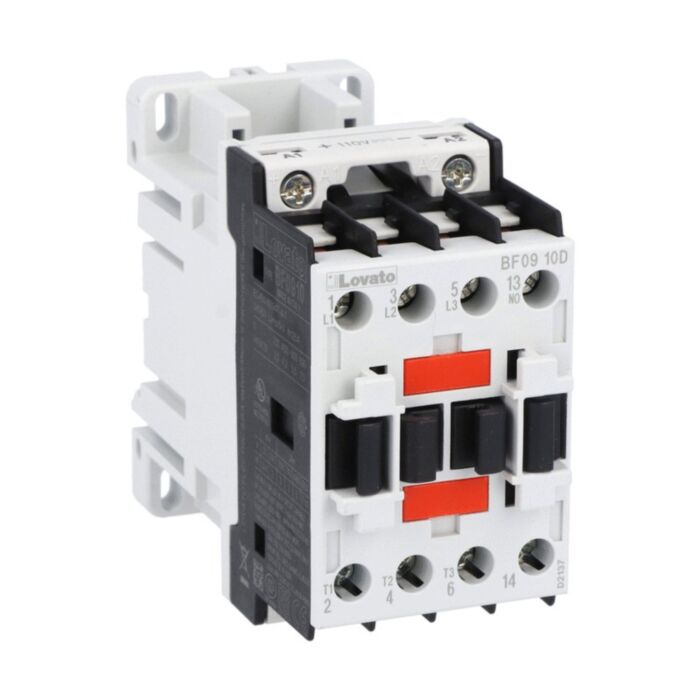

BF0910D012 - 3P CONTACTOR 1NO 9A AC3 12VDC
MPN: BF0910D012
Special Price
£61.57
£51.31
Regular Price
£102.61
Why Choose the BF0910D012?
The Lovato BF0910D012 three-pole contactor delivers reliable switching for motor and general-purpose loads in compact panels. Featuring a 12 V DC coil and built-in 1NO auxiliary contact, the BF0910D012 is rated 9A AC-3 at 400V (4.2Kw) and 25A AC-1. With screw or 35 mm DIN rail mounting, it integrates easily into OEM machinery and control cabinets.
Engineered to IEC/EN/BS 60947, the BF09 platform offers robust performance: Ui 690 V, Uimp 6 kV and a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C up to 3000 m altitude, with terminals tightened to 1.5 to 1.8 Nm. A 5 HP rating at 480 V under UL/CSA complements international standards compliance for dependable service in industrial environments.
Key Benefits
- Compact three-pole contactor with 12 V DC coil.
- AC-3 9A at 400V, suitable for motors up to 4.2Kw.
- AC-1 Ith 25A for resistive loads and auxiliaries.
- Built-in 1NO auxiliary contact simplifies signalling.
- Screw or 35 mm DIN rail mounting for fast installation.
- High endurance: 20,000,000 mechanical operating cycles.
- Rated Ui 690 V and Uimp 6 kV for insulation strength.
- UL/CSA 5 HP at 480V supports North American applications.
Technical Specification
- Product type designation: BF09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 25 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 492 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF0910D012 three-pole contactor (12 V DC coil)
- Built-in 1NO auxiliary contact
- Manufacturer datasheet (PDF)
Applications
- Motor starters up to 9A AC-3 at 400V (4.2Kw)
- Control of pumps, fans and compressors
- Heating, lighting and other resistive load switching (AC-1)
- Panel building and OEM machinery integration
- Automation and process control cabinets
Frequently Asked Questions
What is the coil voltage and type?
The BF0910D012 uses a 12 V DC coil for control circuits.
How many poles and auxiliary contacts does it have?
It is a three-pole contactor with a built-in 1NO auxiliary contact.
What are the main current and power ratings?
It is rated 9A AC-3 at 400V (4.2Kw) and 25A AC-1; UL/CSA rating is 5 HP at 480V.
What mounting options are supported?
It mounts via screws or on a 35 mm DIN rail.
Which standards and environmental limits apply?
It conforms to IEC/EN/BS 60947, UL and CSA standards, operates from -50 to 70 °C and up to 3000 m altitude.
Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power before work, tighten terminals to 1.5 to 1.8 Nm, and operate within the stated ratings, temperatures and environmental limits.
| Manufacturer Part Number | BF0910D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975166048 |
| Coil Voltage | 12VDC |
