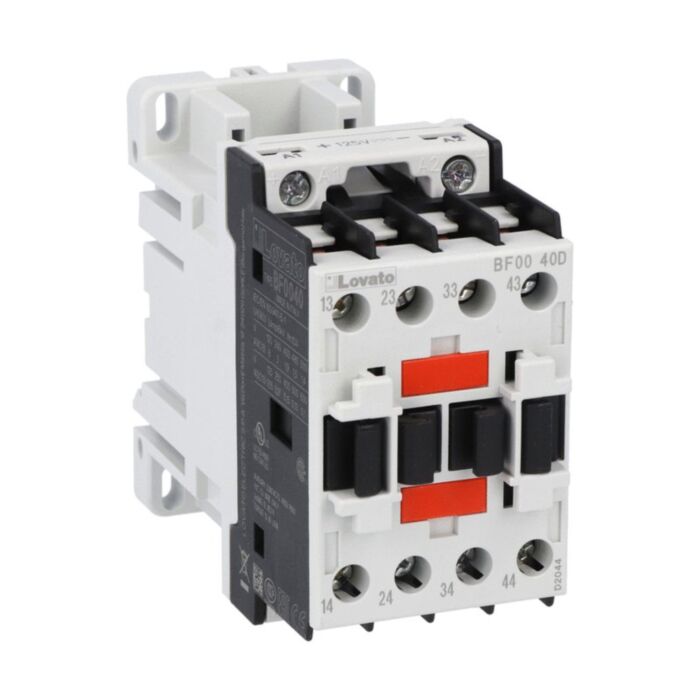

BF0040D060 - CONTROL RELAY 4NO 60VDC
MPN: BF0040D060
Special Price
£95.38
£79.48
Regular Price
£158.96
Why Choose the BF0040D060?
Optimise panel control with the Lovato BF0040D060 control relay, engineered for dependable switching in AC and DC control circuits. This 4-pole unit features a 60 VDC coil and four normally open contacts (4NO) for straightforward signalling and interlocking. With Ui 690 V, Uimp 6 kV and Ith 10 A, it delivers robust performance across demanding industrial environments and applications.
Flexible installation via screw fixing or 35 mm DIN rail speeds build and maintenance. Designed for endurance with 20,000,000 mechanical cycles, 1.5–1.8 Nm terminal torque, and an operating range of −50 to +70 °C. Rated for Pollution Degree 3 and up to 3000 m altitude, it complies with IEC/EN 60947-1/-5-1, UL and CSA standards.
Key Benefits
- 60 VDC coil simplifies integration in DC control circuits.
- Four normally open contacts enable clear, reliable signalling.
- 10 A Ith provides robust current-carrying capability.
- High insulation: Ui 690 V, Uimp 6 kV.
- Rapid panel fit with screw or 35 mm DIN rail mounting.
- Long mechanical life rated at 20,000,000 cycles.
- Operates from −50 to +70 °C for harsh environments.
- Sustainability certification supports environmental procurement policies.
Technical Specification
- Product type designation: BF00
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 496 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF0040D060 control relay unit
- Product documentation and safety information
Applications
- Industrial control panels and switchboards
- Machine automation and interlocking circuits
- Signal switching in process control systems
- HVAC and building management control circuits
- Power distribution auxiliaries and monitoring
Frequently Asked Questions
What coil voltage does the Lovato BF0040D060 require?
It uses a 60 VDC coil, suitable for DC control circuits.
How many and what type of contacts does it have?
It provides four normally open (4NO) contacts across four poles.
How can this relay be mounted in a panel?
It supports screw mounting or standard 35 mm DIN rail installation.
What are the environmental operating limits?
The operating temperature range is −50 to +70 °C, with a maximum altitude of 3000 m.
Which standards does the product comply with?
It meets IEC/EN 60947-1 and 60947-5-1, plus UL and CSA equivalents.
Safety note: Installation and servicing must be performed by qualified personnel. Isolate power before wiring, observe the 1.5–1.8 Nm terminal torque, and operate within the specified ratings and environmental limits.
| Manufacturer Part Number | BF0040D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167564 |
| Coil Voltage | 60VDC |
