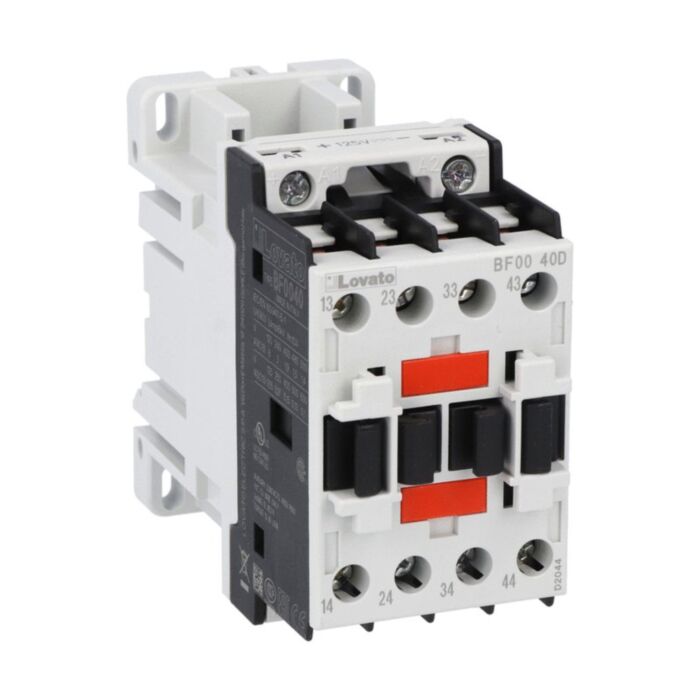

BF0040D024 - CONTROL RELAY 4NO 24VDC

Why Choose the BF0040D024?

The Lovato BF0040D024 control relay brings dependable auxiliary switching to 24 V DC control circuits. Featuring a DC coil and four normally-open contacts (4NO), this BF00-designated device suits panel builders needing compact, versatile control relays. It installs quickly via screw fixings or on a 35 mm DIN rail, streamlining panel assembly and maintenance.

Engineered for demanding environments, it offers Ui 690 V, Uimp 6 kV and Ith 10 A, with a mechanical life of 20,000,000 cycles. Rated for -50 to 70 °C operation and up to 3000 m altitude (pollution degree 3), it meets IEC/EN 60947-1 and 60947-5-1, plus UL and CSA equivalents, supporting safe, standards-compliant integration.

Key Benefits

• Reliable 24 V DC coil for precise, low-power control circuits.
• Four normally-open contacts deliver flexible auxiliary switching capability.
• High insulation rating Ui 690 V enhances safety in industrial panels.
• Withstand 6 kV impulse overvoltages for robust surge resilience.
• Ith 10 A supports a wide range of control and signalling loads.
• Quick screw or 35 mm DIN rail mounting speeds installation.
• Designed for harsh environments: pollution degree 3 and 3000 m altitude.
• Exceptional mechanical life of 20,000,000 cycles reduces maintenance.

Technical Specification

• Product type designation: BF00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 480 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF0040D024 control relay
• Original manufacturer packaging
• Product information leaflet (where supplied)

Applications

• Industrial control panels and auxiliary switching duties
• Automation and signalling circuits requiring 24 V DC coils
• DIN rail panel assemblies in machinery and process equipment
• Interlocking and interface functions in control cabinets
• Projects needing IEC/EN 60947-compliant components

Safety note: Install and service only by qualified personnel. Disconnect power before work, tighten terminals to 1.5–1.8 Nm, and follow IEC/EN 60947 and local regulations.
