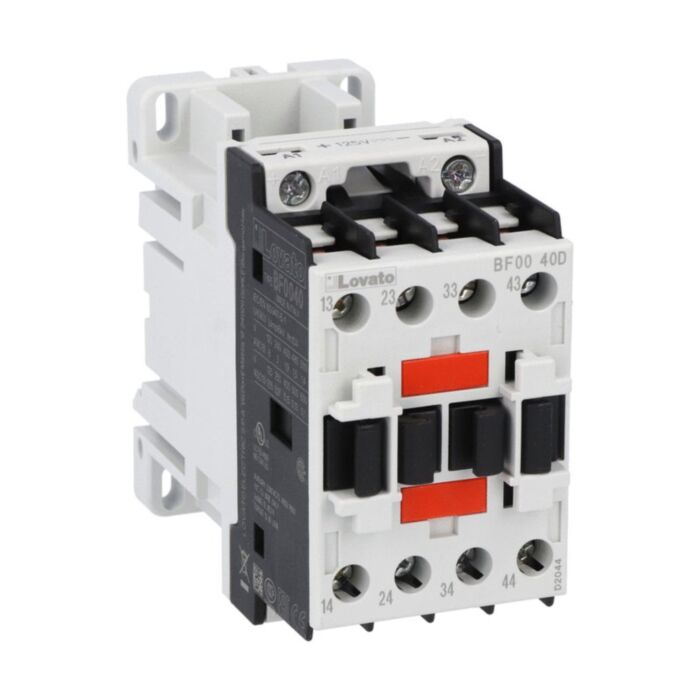

BF0040D012 - CONTROL RELAY 4NO 12VDC

Why Choose the BF0040D012?

Lovato’s BF0040D012 control relay is designed for AC and DC control circuits, pairing a 12 V DC coil with four normally open contacts for dependable multi-point switching. With 4 poles, Ui rated at 690 V and Uimp at 6 kV, it supports robust isolation and surge withstand, making it a solid choice for industrial panels and automation builds.

Installation is straightforward via screws or a 35 mm DIN rail, with terminal tightening torque of 1.5 to 1.8 Nm. Rated for -50 to 70 °C operation, up to 3,000 m altitude and pollution degree 3, it delivers a mechanical life of 20,000,000 cycles. Compliance includes IEC/EN 60947-1 and 60947-5-1, plus UL and CSA equivalents.

Key Benefits

• 12 V DC coil for precise, reliable low-voltage control.
• Four NO contacts enable flexible multi-circuit switching.
• Ui 690 V insulation rating enhances electrical safety margins.
• 6 kV impulse withstand improves surge resilience.
• Ith 10 A supports a broad range of control loads.
• Screw or 35 mm DIN rail mounting simplifies installation.
• Operates from -50 to 70 °C for harsh environments.
• Mechanical life of 20,000,000 cycles reduces maintenance.

Technical Specification

• Product type designation: BF00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 496 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF0040D012 control relay (4NO, 12 V DC coil)
• Installation and safety information
• Manufacturer documentation and conformity details

Applications

• Industrial control panels and automation systems
• Machine interlocking and sequence control circuits
• Conveyor and material handling control
• General control and signalling interface switching
• Low-voltage DC control circuits requiring 4NO outputs

Safety note: Install and commission only by qualified personnel. Isolate power before wiring, tighten terminals to 1.5–1.8 Nm, and operate within specified voltage, current, temperature, and altitude limits per IEC/EN 60947.
