BF0031D060 - CONTROL RELAY 3NO+1NC 60VDC

Why Choose the BF0031D060?

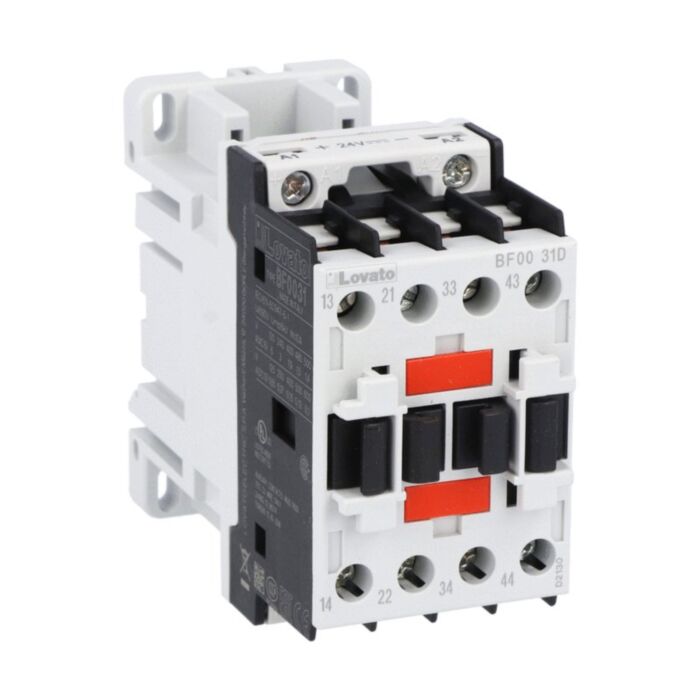

The Lovato BF0031D060 is a robust control relay designed for dependable switching in industrial control circuits. Featuring a DC coil rated at 60 V, it provides 4 poles with 3 normally-open and 1 normally-closed auxiliary contacts for flexible signalling. With screw or 35 mm DIN rail mounting options, this Ui 690 V, Uimp 6 kV device streamlines panel integration while delivering reliable performance across demanding applications.

Part of the BF00 range of control relays with AC and DC control circuit, this unit is engineered for longevity with 20,000,000 mechanical cycles and Ith 10 A. It operates from -50 to 70 °C up to 3000 m altitude, Pollution Degree 3, with terminal tightening torque of 1.5 to 1.8 Nm. Compliant with IEC/EN, UL and CSA 60947 standards, it suits harsh industrial environments.

Key Benefits

• DC coil 60 V for stable low-voltage control performance.
• 3NO+1NC auxiliary contacts deliver versatile signalling options.
• 4-pole configuration supports diverse control circuit designs.
• Rated insulation voltage 690 V enhances safety margins.
• High impulse withstand 6 kV improves transient resistance.
• Mechanical life 20,000,000 cycles for long service intervals.
• DIN rail or screw mounting simplifies panel installation.
• Ith 10 A for reliable thermal current capacity.

Technical Specification

• Product type designation: BF00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 496 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF0031D060 control relay
• Installation and safety instructions
• Manufacturer datasheet (digital access)
• Original manufacturer packaging

Applications

• Industrial control panels and automation systems
• Auxiliary switching and signalling circuits
• Interlocking and logic control in machinery
• PLC interface and control circuits
• Building services and HVAC control panels

Safety note: Installation must be carried out by qualified personnel. Isolate power before work, and tighten terminals to 1.5–1.8 Nm. Observe the stated environmental ratings and relevant standards.
