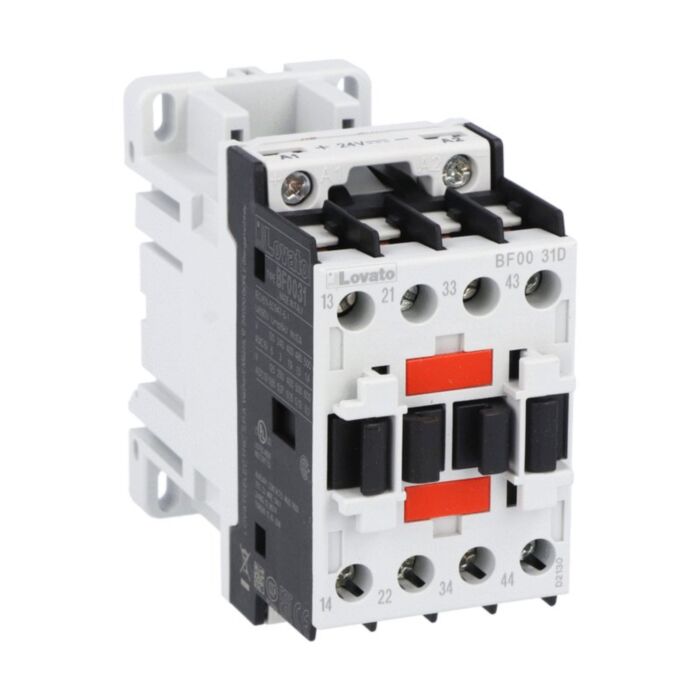

BF0031D024 - CONTROL RELAY 3NO+1NC 24VDC
MPN: BF0031D024
Special Price
£95.38
£79.48
Regular Price
£158.96
Why Choose the BF0031D024?
Lovato’s BF0031D024 control relay belongs to the ‘Control relays with AC and DC control circuit’ range and uses a 24 V DC coil. It offers four poles with 3NO + 1NC auxiliary contacts for versatile signalling and interlocking. Installation is straightforward via screw mounting or 35 mm DIN rail, and robust electrical ratings (Ui 690 V, Uimp 6 kV, Ith 10 A) suit demanding control applications.
Engineered for reliability, this BF00-designation relay delivers 20,000,000 mechanical cycles and operates from -50 to 70 °C, up to 3000 m altitude, Pollution Degree 3. Conformity with IEC/EN 60947-1 and 60947-5-1 plus UL and CSA standards supports global panel specifications. Secure terminations are ensured with 1.5–1.8 Nm tightening torque, and the 500 g build suits fixed installations in industrial environments.
Key Benefits
- 24 V DC coil for reliable low-voltage control circuits
- 3NO+1NC across 4 poles for versatile signalling options
- High insulation ratings: Ui 690 V and Uimp 6 kV
- Long mechanical life rated at 20,000,000 cycles
- Wide operating temperature range from -50 to 70 °C
- Flexible mounting via screw fixings or 35 mm DIN rail
- Ith 10 A supports robust control circuit duties
- Meets IEC/EN, UL, and CSA industrial standards
Technical Specification
- Product type designation: BF00
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF0031D024 control relay
- Basic installation leaflet
- Manufacturer datasheet (downloadable)
Applications
- Industrial control panels and automation cabinets
- Machine interlocking and signalling circuits
- HVAC and building services control systems
- Process control and conveyor systems
- Switchboards using 24 V DC control circuits
Frequently Asked Questions
What is the coil voltage and type for BF0031D024?
It uses a DC coil with a rated coil voltage of 24 V.
What contact configuration does this relay provide?
It offers four poles with 3NO + 1NC auxiliary contacts.
How can the relay be mounted in a panel?
It supports screw mounting or installation on a 35 mm DIN rail.
What operating conditions does it support?
It operates from -50 to 70 °C and up to 3000 m altitude, Pollution Degree 3.
Which standards does the BF0031D024 conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, and CSA equivalents.
Safety note: Always isolate power before installation, tighten terminals to 1.5–1.8 Nm, and operate within the stated electrical and environmental ratings.
| Manufacturer Part Number | BF0031D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167618 |
| Coil Voltage | 24VDC |
