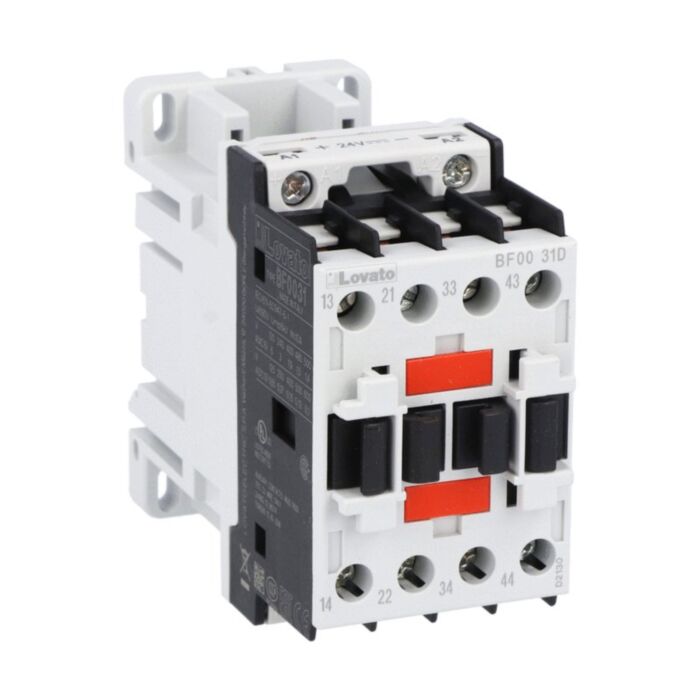

BF0031D012 - CONTROL RELAY 3NO+1NC 12VDC
MPN: BF0031D012
Special Price
£95.38
£79.48
Regular Price
£158.96
Why Choose the BF0031D012?
Lovato’s BF0031D012 is a robust control relay designed for reliable switching in industrial control circuits. Featuring a 12 V DC coil and a 4-pole contact set with 3NO+1NC, it fits screw or 35 mm DIN rail mounting. With Ui rated at 690 V and Uimp at 6 kV, it delivers dependable performance in panels, machinery and automation applications.
Built for demanding environments, this BF00 series relay offers Ith 10 A, mechanical life to 20,000,000 cycles and an operating range from -50 to 70 °C. Terminal tightening torque is 1.5 to 1.8 Nm, with pollution degree 3 and use up to 3000 m altitude. Conforms to IEC/EN 60947-1 and 60947-5-1, plus UL and CSA.
Key Benefits
- 12 V DC coil suits low-voltage control systems and panel integration.
- 4-pole, 3NO+1NC contacts enable versatile switching and interlocking.
- Ui 690 V and 6 kV Uimp improve insulation and surge withstand.
- Ith 10 A accommodates common control loads with headroom.
- Screw or 35 mm DIN rail mounting simplifies installation and retrofits.
- Mechanical life of 20,000,000 cycles reduces downtime and maintenance.
- Operates from -50 to 70 °C for harsh or cold environments.
Technical Specification
- Product type designation: BF00
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 496 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF0031D012 control relay
- Manufacturer datasheet (download)
- Original manufacturer packaging
Applications
- Industrial control panels and automation cabinets
- Machine interlocking and signalling circuits
- PLC interface and auxiliary switching
- General-purpose control circuits with 12 V DC coils
Frequently Asked Questions
What is the coil voltage of the BF0031D012?
The control relay has a 12 V DC coil.
How many contacts and what configuration does it provide?
It is a 4-pole relay with 3NO and 1NC auxiliary contacts.
How can this relay be mounted?
It supports screw mounting or 35 mm DIN rail installation.
What standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-5-1, UL 60947-1 and UL 60947-5-1, and CSA C22.2 n° 60947-1 and 60947-5-1.
What are its operating conditions?
Operating temperature is -50 to 70 °C, with use up to 3000 m altitude. Pollution degree is 3.
Safety note: Installation and maintenance should be carried out by qualified personnel. Isolate power before wiring and tighten terminals to 1.5 to 1.8 Nm in accordance with applicable IEC/EN 60947 requirements.
| Manufacturer Part Number | BF0031D012 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167601 |
| Coil Voltage | 12VDC |
