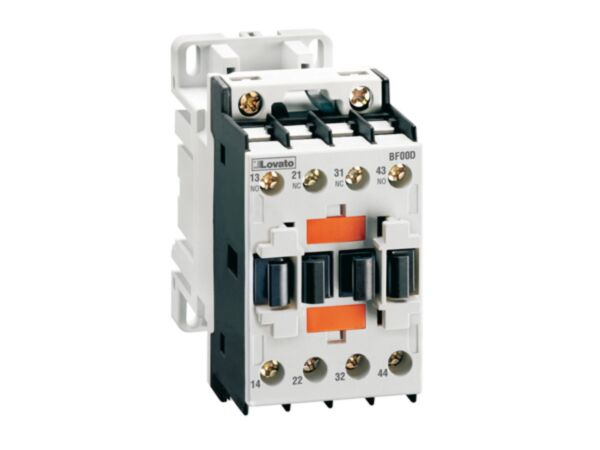

BF0022L024 - CONTROL RELAY 2NO+2NC 24VDC LOW C.

Why Choose the BF0022L024?

Lovato BF0022L024 is a robust control relay with a 24V DC low-consumption coil, designed for reliable auxiliary switching in control circuits. This 4-pole unit provides 2NO+2NC contacts and fits screw or 35mm DIN rail mounting, streamlining panel integration. SKU BF0022L024 delivers high durability and consistent performance for industrial control panels and automation builds.

Engineered for demanding environments, the BF0022L024 offers Ui 690 V, Uimp 6 kV and Ith 10 A, with a mechanical life of 20,000,000 cycles. Operating from -50 to 70 °C and up to 3000 m altitude (pollution degree 3), it ensures dependable service. Conforms to IEC/EN 60947-1 and 60947-5-1, plus UL and CSA equivalents.

Key Benefits

• Low-consumption 24V DC coil minimises control power demand.
• 2NO+2NC contacts deliver flexible 4‑pole auxiliary switching.
• Rated Ui 690 V and Uimp 6 kV for robust insulation.
• Ith 10 A for dependable thermal withstand in control circuits.
• Screw or 35mm DIN rail mounting speeds panel installation.
• -50 to 70 °C operation supports wide ambient conditions.
• Mechanical life of 20,000,000 cycles enhances service longevity.

Technical Specification

• Product type designation: BF00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 500 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF0022L024 control relay, 2NO+2NC, 24V DC coil
• Product documentation (downloadable datasheet)
• Protective packaging for transit

Applications

• Industrial control panels and automation cabinets
• Machinery interlocking and signalling circuits
• PLC and automation interface switching
• General auxiliary control in AC/DC control circuits

Safety note: Install and commission only by qualified personnel. Isolate power before work, and tighten terminals to 1.5–1.8 Nm in accordance with the manufacturer’s specifications and applicable standards.
