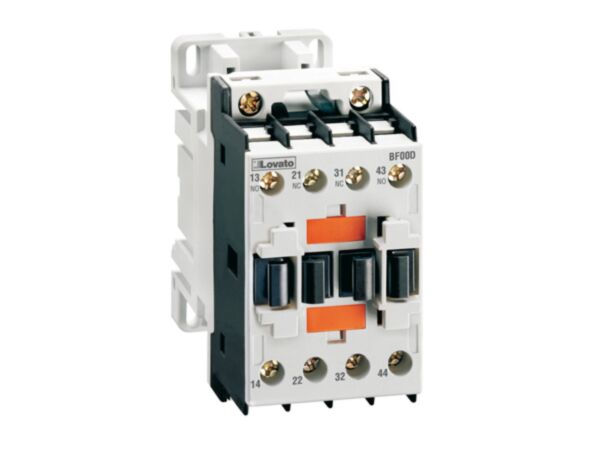

BF0022D060 - CONTROL RELAY 2NO+2NC 60VDC
MPN: BF0022D060
Special Price
£95.38
£79.48
Regular Price
£158.96
Why Choose the BF0022D060?
Lovato’s BF0022D060 control relay delivers reliable switching for AC and DC control circuits. With a 60 V DC coil and a 4-pole contact set featuring 2NO+2NC auxiliaries, it serves panel builders and OEMs well. Rated Ui 690 V and Uimp 6 kV, it mounts on 35 mm DIN rail or with screws for flexible installation in new assemblies and retrofits.
With an Ith of 10 A, mechanical life of 20,000,000 cycles and operation from -50 to 70 °C, this BF00 series relay is engineered for endurance. Pollution degree 3, maximum altitude 3000 m and compliance with IEC/EN 60947-1 and 60947-5-1, plus UL and CSA equivalents, support robust, standards-aligned performance in demanding control panels, alongside sustainability certification.
Key Benefits
- 60 V DC coil for straightforward integration in DC control circuits.
- 4-pole, 2NO+2NC contacts enable versatile auxiliary switching arrangements.
- Rated Ui 690 V and Uimp 6 kV for insulation strength.
- Ith 10 A supports a broad range of control circuit loads.
- Mechanical life of 20,000,000 cycles for long operational service.
- Operates from -50 to 70 °C to suit harsh environments.
- DIN rail 35 mm or screw mounting for installation flexibility.
- Conforms to IEC/EN, UL, and CSA standards for compliance.
Technical Specification
- Product type designation: BF00
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 500 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF0022D060 control relay
- Installation and safety information
- Manufacturer product datasheet (PDF)
- Protective packaging
Applications
- Auxiliary switching in control circuits
- Interlocking and signalling in automation panels
- General panel building for AC/DC control systems
- Upgrades or replacements in existing control cabinets
Frequently Asked Questions
What is the coil voltage and type of the Lovato BF0022D060?
It has a DC coil rated at 60 V. The SKU BF0022D060 indicates the 60 V DC variant.
What is the contact configuration and number of poles?
It provides 4 poles with built-in auxiliary contacts arranged as 2NO+2NC.
How can this relay be mounted in a control panel?
It supports screw mounting or installation on a 35 mm DIN rail.
What operating temperature range does it support?
The specified operating range is -50 to 70 °C.
Which standards and approvals does it meet?
It conforms to IEC/EN 60947-1 and 60947-5-1, UL 60947-1, UL 60947-5-1, and CSA C22.2 n° 60947-1 and 60947-5-1.
Safety note: Install and commission only by qualified personnel. Isolate all power before wiring, tighten terminals to 1.5 to 1.8 Nm, and follow applicable IEC/EN, UL, CSA standards and local regulations.
| Manufacturer Part Number | BF0022D060 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167700 |
| Coil Voltage | 60VDC |
